DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevatePTPM-P-15 (PUT-P-15) - PENETRATION HOT STACK WITH ULTRAPLY T

Elevate Hot Stack Penetration Detail (Roofing Penetration). Model PTPM-P-15. Maximum warranty: 30 years; Required when service line temperature exceeds 160 °F (71 °C); Includes continuous bead of temperature or high grade sealant; Pipe surface must be free of rust, grease, and insulation. material: Platinum Ultraply TPO, Stainless Steel Clamping Ring, Insulated Metal Sleeve

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPTPM-P-15-PUT-P-15---PENETRATION-HOT-STACK-WITH-ULTRAPLY-T.pdfData sheet

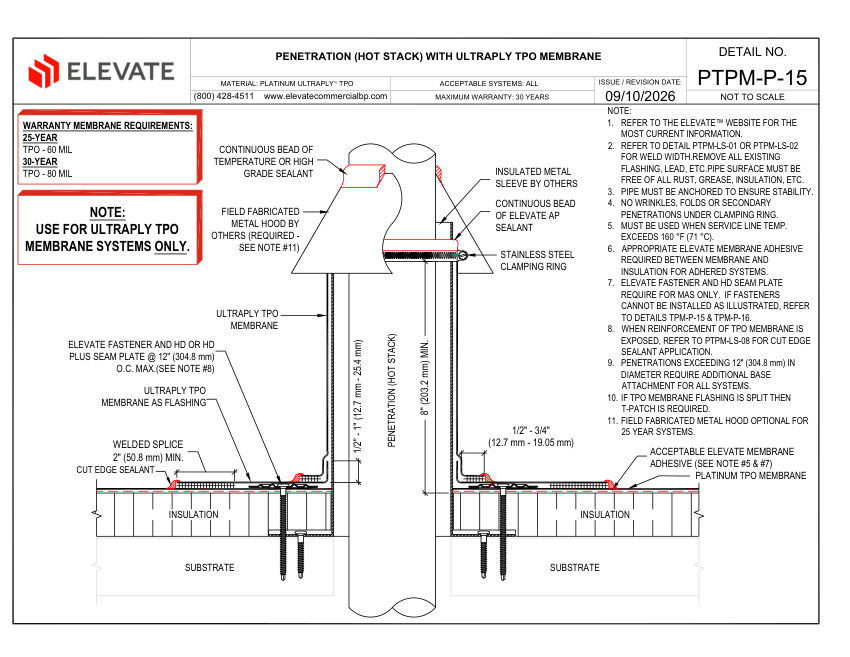

Elevate PTPM-P-15 (PUT-P-15) - PENETRATION HOT STACK WITH ULTRAPLY T cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
PTPM-P-15 (PUT-P-15) - PENETRATION HOT STACK WITH ULTRAPLY T
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPTPM-P-15 (PUT-P-15) - PENETRATION HOT STACK WITH ULTRAPLY T
DescriptionElevate Hot Stack Penetration Detail (Roofing Penetration). Model PTPM-P-15. Maximum warranty: 30 years; Required when service line temperature exceeds 160 °F (71 °C); Includes continuous bead of temperature or high grade sealant; Pipe surface must be free of rust, grease, and insulation. material: Platinum Ultraply TPO, Stainless Steel Clamping Ring, Insulated Metal Sleeve
Connection size1/2" - 1" (12.7 mm - 25.4 mm)
End connectionClamping Ring
MountingElevate Fastener and HD or HD Plus Seam Plate @ 12" (304.8 mm)
Dimensions8" (203.2 mm) min. membrane extension
ComplianceUse for
