DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevatePTPM-RE-01 (PUT-RE-01 & PKE-RE-01) - THERMOPLASTIC MEMBRANE

Elevate Thermoplastic Membrane Roof Edge with Fascia (Roofing). Model PTPM-RE-01. Compatible with all Elevate thermoplastic membrane systems; Fascia cover provided in 12'-0" lengths; Requires continuous bead of Elevate Water Block Sealant; Fasteners spaced 12" (304.8 mm) O.C.. material: 80 MIL TPO / PVC KEE / MAX PVC

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPTPM-RE-01-PUT-RE-01-PKE-RE-01---THERMOPLASTIC-MEMBRANE.pdfData sheet

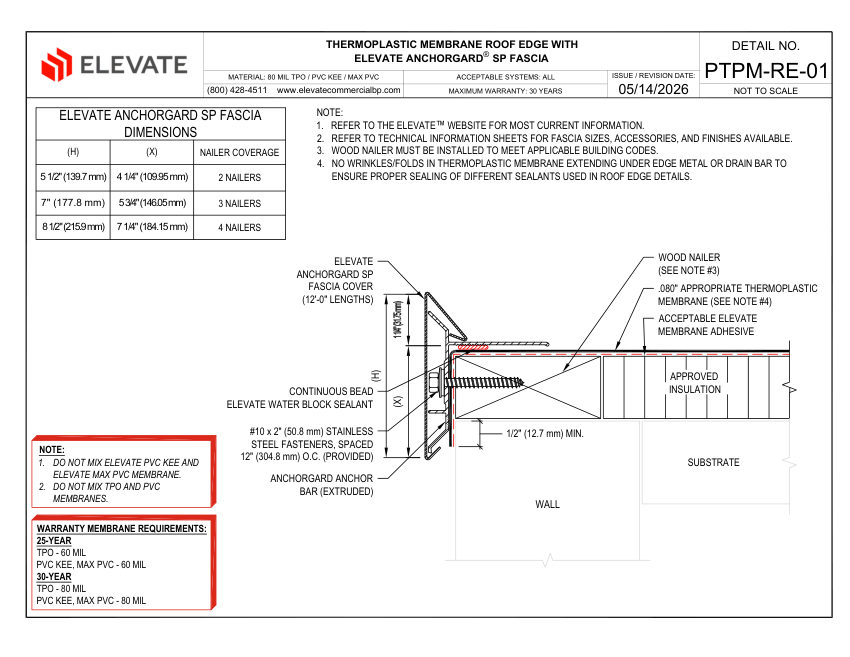

Elevate PTPM-RE-01 (PUT-RE-01 & PKE-RE-01) - THERMOPLASTIC MEMBRANE cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
PTPM-RE-01 (PUT-RE-01 & PKE-RE-01) - THERMOPLASTIC MEMBRANE
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPTPM-RE-01 (PUT-RE-01 & PKE-RE-01) - THERMOPLASTIC MEMBRANE
DescriptionElevate Thermoplastic Membrane Roof Edge with Fascia (Roofing). Model PTPM-RE-01. Compatible with all Elevate thermoplastic membrane systems; Fascia cover provided in 12'-0" lengths; Requires continuous bead of Elevate Water Block Sealant; Fasteners spaced 12" (304.8 mm) O.C.. material: 80 MIL TPO / PVC KEE / MAX PVC
MountingWood Nailer, #10 x 2" Stainless Steel Fasteners
Dimensions5 1/2" (139.7 mm) H x 4 1/4" (109.95 mm) X; 7" (177.8 mm) H x 5 3/4" (146.05 mm) X; 8 1/2" (215.9 mm) H x 7 1/4" (184.15 mm) X
Compliance30-Year Maximum Warranty.
