DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevatePTPM-RE-09 (PUT-RE-09 & PKE-RE-04) - THERMOPLASTIC MEMBRANE

Elevate Thermoplastic Membrane Roof Edge with Fascia (Roofing Edge Detail). Model PTPM-RE-09. Compatible with 80 MIL TPO, PVC KEE, and MAX PVC membranes; Includes 3 1/2" (88.9 mm) wide splice plate at joints; Requires appropriate membrane adhesive between membrane and insulation; Standard fascia not compatible with thermoplastic strip thicker than 0.060". material: 80 MIL TPO / PVC KEE / MAX PVC; 24 GA. GALV. STEEL

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPTPM-RE-09-PUT-RE-09-PKE-RE-04---THERMOPLASTIC-MEMBRANE.pdfData sheet

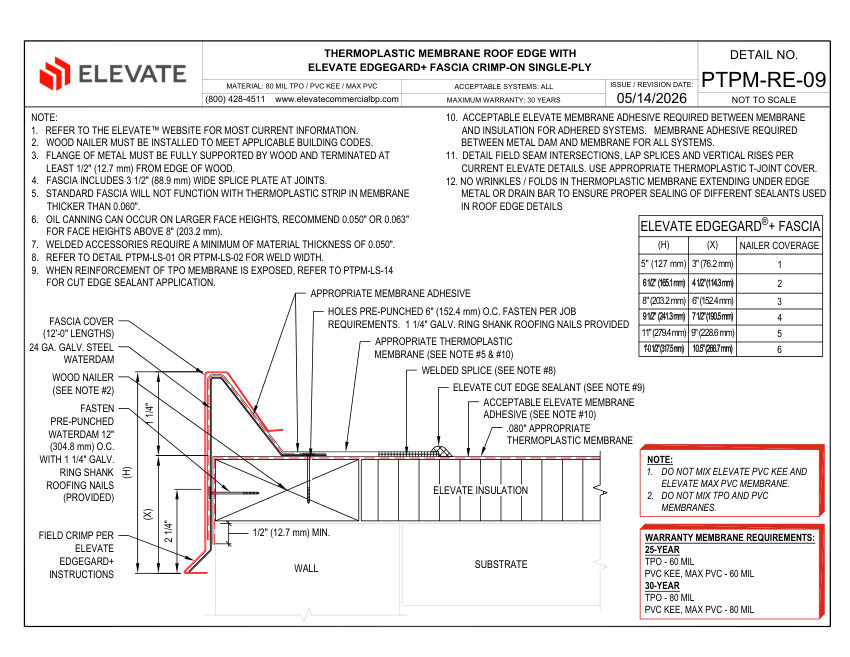

Elevate PTPM-RE-09 (PUT-RE-09 & PKE-RE-04) - THERMOPLASTIC MEMBRANE cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
PTPM-RE-09 (PUT-RE-09 & PKE-RE-04) - THERMOPLASTIC MEMBRANE
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPTPM-RE-09 (PUT-RE-09 & PKE-RE-04) - THERMOPLASTIC MEMBRANE
DescriptionElevate Thermoplastic Membrane Roof Edge with Fascia (Roofing Edge Detail). Model PTPM-RE-09. Compatible with 80 MIL TPO, PVC KEE, and MAX PVC membranes; Includes 3 1/2" (88.9 mm) wide splice plate at joints; Requires appropriate membrane adhesive between membrane and insulation; Standard fascia not compatible with thermoplastic strip thicker than 0.060". material: 80 MIL TPO / PVC KEE / MAX PVC; 24 GA. GALV. STEEL
Connection size12'-0" Lengths
End connectionCrimp-On
FinishGalvanized
Mounting1 1/4" Galv. Ring Shank Roofing Nails
Dimensions5" (127 mm) / 3" (76.2 mm) Nailers; 8" (20
