ElevatePTPMXR-BT-01 (PKEXR-BT-01) - BASE TIE-IN WITH STANDARD THERM

Elevate Base Tie-In (Roofing Detail). Model PTPMXR-BT-01. Includes standard thermoplastic flashing and HD seam plates; Compatible with TPO and PVC membranes (do not mix types); Requires minimum .080" (2.03 mm) thermoplastic XR membrane; Fasteners must be max 10" (254 mm) long. material: .080" ULTRAPLY TPO, ELEVATE PVC KEE XR, ELEVATE PVC KEE XRT, ELEVATE MAX PVC XR

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPTPMXR-BT-01-PKEXR-BT-01---BASE-TIE-IN-WITH-STANDARD-THERM.pdfData sheet

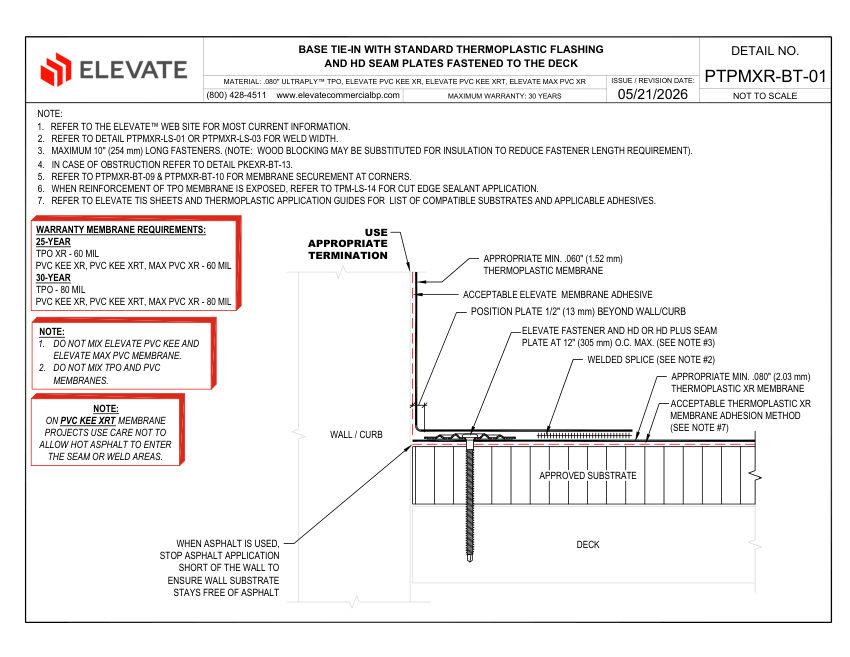

Elevate PTPMXR-BT-01 (PKEXR-BT-01) - BASE TIE-IN WITH STANDARD THERM cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
PTPMXR-BT-01 (PKEXR-BT-01) - BASE TIE-IN WITH STANDARD THERM
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPTPMXR-BT-01 (PKEXR-BT-01) - BASE TIE-IN WITH STANDARD THERM
DescriptionElevate Base Tie-In (Roofing Detail). Model PTPMXR-BT-01. Includes standard thermoplastic flashing and HD seam plates; Compatible with TPO and PVC membranes (do not mix types); Requires minimum .080" (2.03 mm) thermoplastic XR membrane; Fasteners must be max 10" (254 mm) long. material: .080" ULTRAPLY TPO, ELEVATE PVC KEE XR, ELEVATE PVC KEE XRT, ELEVATE MAX PVC XR
End connectionHD Seam Plates
MountingFastened to Deck
DimensionsFasteners max 10" (254 mm); Plate 1/2" (13 mm) beyond wall/curb; Spacing 12" (305 mm) O.C. max
Compliance30-Year Warranty.
