ElevatePTPMXR-BT-03 (PKEXR-BT-03) - BASE TIE-IN CURB OR PARAPET WIT

Elevate Base Tie-In Curb or Parapet with Existing Cant (Roofing Detail). Model PTPMXR-BT-03. Detail No. PTPMXR-BT-03; Compatible with TPO and PVC membranes; Requires appropriate termination wood nailer; Seam plate positioned 1/4" (6 mm) min. beyond toe of cant. material: .080" ULTRAPLY™ TPO, ELEVATE PVC KEE XR, ELEVATE PVC KEE XRT, ELEVATE MAX PVC XR

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPTPMXR-BT-03-PKEXR-BT-03---BASE-TIE-IN-CURB-OR-PARAPET-WIT.pdfData sheet

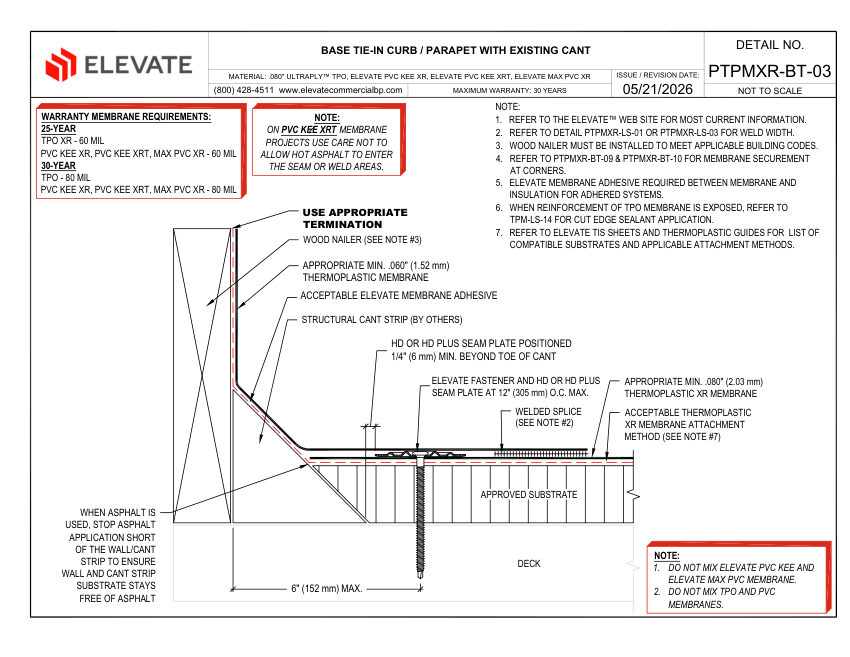

Elevate PTPMXR-BT-03 (PKEXR-BT-03) - BASE TIE-IN CURB OR PARAPET WIT cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
PTPMXR-BT-03 (PKEXR-BT-03) - BASE TIE-IN CURB OR PARAPET WIT
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPTPMXR-BT-03 (PKEXR-BT-03) - BASE TIE-IN CURB OR PARAPET WIT
DescriptionElevate Base Tie-In Curb or Parapet with Existing Cant (Roofing Detail). Model PTPMXR-BT-03. Detail No. PTPMXR-BT-03; Compatible with TPO and PVC membranes; Requires appropriate termination wood nailer; Seam plate positioned 1/4" (6 mm) min. beyond toe of cant. material: .080" ULTRAPLY™ TPO, ELEVATE PVC KEE XR, ELEVATE PVC KEE XRT, ELEVATE MAX PVC XR
MountingHD or HD Plus Seam Plate at 12" (305 mm) O.C. Max.
DimensionsMin. .060" (1.52 mm) Thermoplastic Membrane; Min. .080" (2.03 mm) Thermoplastic XR Membrane
Compliance30-Year Maximum Warranty.
