DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevatePTPMXR-BT-06 (PKEXR-BT-06) - BASE TIE-IN WITH THERMOPLASTIC

Elevate Base Tie-In Splice (Roofing Detail). Model PTPMXR-BT-06. Maximum warranty of 30 years; Requires 1/8" to 1/4" gap between adjoining metal sections; Metal flange must be supported by wood and terminated 1/2" from edge; Compatible with 60 mil and 80 mil thermoplastic membranes. material: .080" ULTRAPLY TPO, ELEVATE PVC KEE XR, ELEVATE PVC KEE XRT, ELEVATE MAX PVC XR

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPTPMXR-BT-06-PKEXR-BT-06---BASE-TIE-IN-WITH-THERMOPLASTIC.pdfData sheet

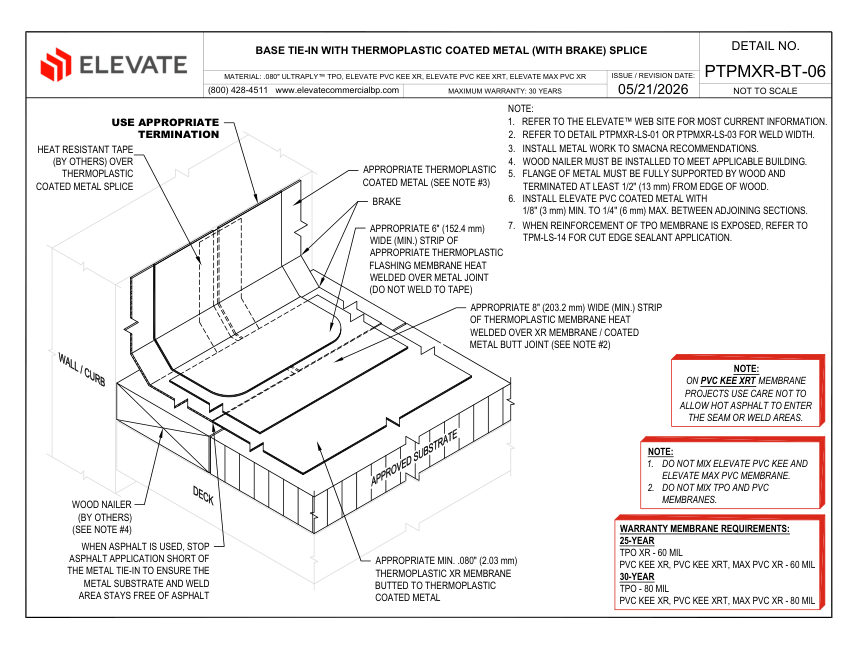

Elevate PTPMXR-BT-06 (PKEXR-BT-06) - BASE TIE-IN WITH THERMOPLASTIC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
PTPMXR-BT-06 (PKEXR-BT-06) - BASE TIE-IN WITH THERMOPLASTIC
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPTPMXR-BT-06 (PKEXR-BT-06) - BASE TIE-IN WITH THERMOPLASTIC
DescriptionElevate Base Tie-In Splice (Roofing Detail). Model PTPMXR-BT-06. Maximum warranty of 30 years; Requires 1/8" to 1/4" gap between adjoining metal sections; Metal flange must be supported by wood and terminated 1/2" from edge; Compatible with 60 mil and 80 mil thermoplastic membranes. material: .080" ULTRAPLY TPO, ELEVATE PVC KEE XR, ELEVATE PVC KEE XRT, ELEVATE MAX PVC XR
End connectionThermoplastic Coated Metal (With Brake)
MountingWood Nailer
Dimensions6" (152.4 mm) min. flashing strip; 8" (203.2 mm) min. membrane strip
ComplianceSMACNA Recommendations.
