ElevatePTPMXR-BT-08 (PKEXR-BT-08) - BASE TIE-IN WITH THERMOPLASTIC

Elevate Base Tie-In Splice (Roofing Detail). Model PTPMXR-BT-08. Maximum warranty: 30 years; Requires 1/8" (3 mm) min. to 1/4" (6 mm) max. gap between adjoining sections; Metal flange must be fully supported by wood and terminated at least 1/2" (13 mm) from edge; Do not mix ELEVATE PVC KEE and ELEVATE MAX PVC membranes. material: .080" ULTRAPLY™ TPO, ELEVATE PVC KEE XR, ELEVATE PVC KEE XRT, ELEVATE MAX PVC XR

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPTPMXR-BT-08-PKEXR-BT-08---BASE-TIE-IN-WITH-THERMOPLASTIC.pdfData sheet

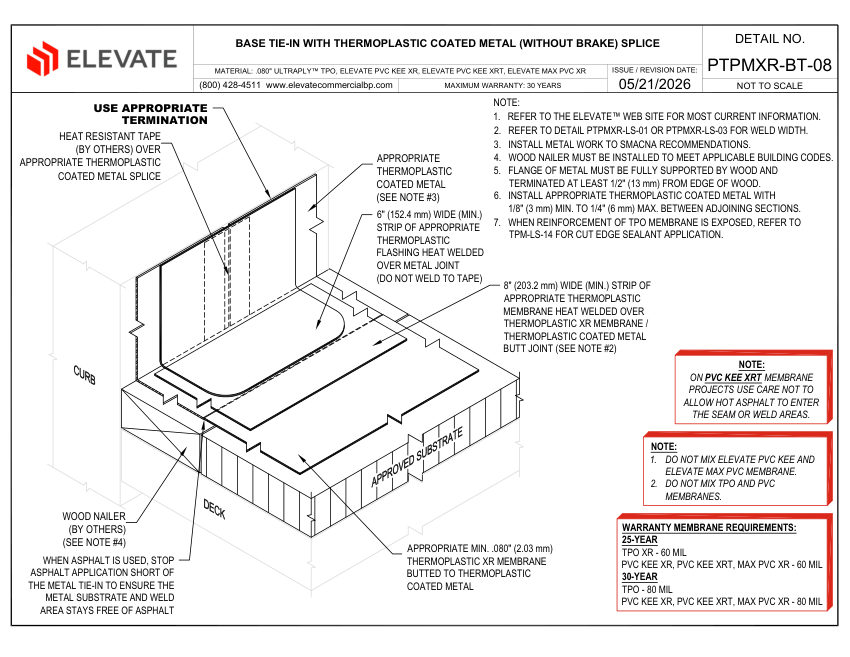

Elevate PTPMXR-BT-08 (PKEXR-BT-08) - BASE TIE-IN WITH THERMOPLASTIC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
PTPMXR-BT-08 (PKEXR-BT-08) - BASE TIE-IN WITH THERMOPLASTIC
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPTPMXR-BT-08 (PKEXR-BT-08) - BASE TIE-IN WITH THERMOPLASTIC
DescriptionElevate Base Tie-In Splice (Roofing Detail). Model PTPMXR-BT-08. Maximum warranty: 30 years; Requires 1/8" (3 mm) min. to 1/4" (6 mm) max. gap between adjoining sections; Metal flange must be fully supported by wood and terminated at least 1/2" (13 mm) from edge; Do not mix ELEVATE PVC KEE and ELEVATE MAX PVC membranes. material: .080" ULTRAPLY™ TPO, ELEVATE PVC KEE XR, ELEVATE PVC KEE XRT, ELEVATE MAX PVC XR
MountingWood Nailer
Dimensions6" (152.4 mm) wide min. flashing strip; 8" (203.2 mm) wide min. membrane strip
ComplianceSMACNA Recommendations.
