ElevatePTPMXR-BT-10 (PKEXR-BT-10) - MEMBRANE SECUREMENT AT INSIDE C

Elevate Membrane Securement at Inside Corner (Roofing Detail). Model PTPMXR-BT-10. Maximum 10" (254 mm) long fasteners; Fasteners at 12" (305 mm) O.C. max; Minimum .080" (2.03 mm) thermoplastic XR membrane required; Do not mix ELEVATE PVC KEE and ELEVATE MAX PVC membranes. material: .080" ULTRAPLY TPO, ELEVATE PVC KEE XR, ELEVATE PVC KEE XRT, ELEVATE MAX PVC XR

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPTPMXR-BT-10-PKEXR-BT-10---MEMBRANE-SECUREMENT-AT-INSIDE-C.pdfData sheet

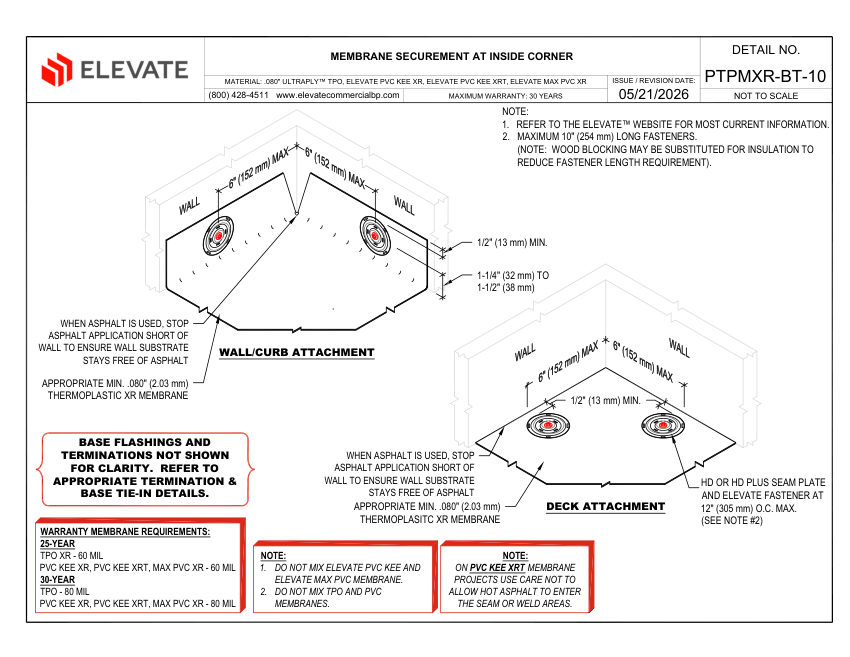

Elevate PTPMXR-BT-10 (PKEXR-BT-10) - MEMBRANE SECUREMENT AT INSIDE C cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
PTPMXR-BT-10 (PKEXR-BT-10) - MEMBRANE SECUREMENT AT INSIDE C
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPTPMXR-BT-10 (PKEXR-BT-10) - MEMBRANE SECUREMENT AT INSIDE C
DescriptionElevate Membrane Securement at Inside Corner (Roofing Detail). Model PTPMXR-BT-10. Maximum 10" (254 mm) long fasteners; Fasteners at 12" (305 mm) O.C. max; Minimum .080" (2.03 mm) thermoplastic XR membrane required; Do not mix ELEVATE PVC KEE and ELEVATE MAX PVC membranes. material: .080" ULTRAPLY TPO, ELEVATE PVC KEE XR, ELEVATE PVC KEE XRT, ELEVATE MAX PVC XR
MountingHD or HD Plus Seam Plate and Elevate Fastener at Deck Attachment
Dimensions1/2" (13 mm) min. clearance; 1-1/4" (32 mm) to 1-1/2" (38 mm) wall/curb attachment
ComplianceMaximum 30 Years Warranty.
