DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevatePTPMXR-LS-02 (PKEXR-LS-02) - THERMOPLASTIC XR MEMBRANE SPLIC

Elevate Thermoplastic XR Membrane Splice (Roofing Membrane). Model PTPMXR-LS-02. Detail No. PTPMXR-LS-02; Compatible with TPO and PVC XR membranes; Requires 8-inch (203.2 mm) thermoplastic cover strip; Membrane thickness minimum 0.080 inches (2.03 mm). material: 0.080" UltraPly TPO, Elevate PVC KEE XR, Elevate PVC KEE XRT, Elevate Max PVC XR

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPTPMXR-LS-02-PKEXR-LS-02---THERMOPLASTIC-XR-MEMBRANE-SPLIC.pdfData sheet

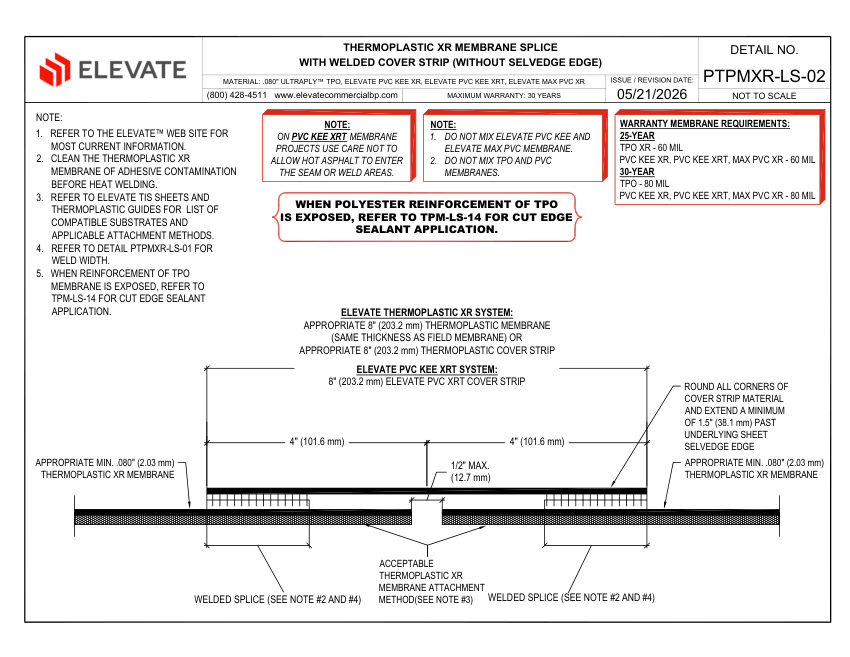

Elevate PTPMXR-LS-02 (PKEXR-LS-02) - THERMOPLASTIC XR MEMBRANE SPLIC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
PTPMXR-LS-02 (PKEXR-LS-02) - THERMOPLASTIC XR MEMBRANE SPLIC
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPTPMXR-LS-02 (PKEXR-LS-02) - THERMOPLASTIC XR MEMBRANE SPLIC
DescriptionElevate Thermoplastic XR Membrane Splice (Roofing Membrane). Model PTPMXR-LS-02. Detail No. PTPMXR-LS-02; Compatible with TPO and PVC XR membranes; Requires 8-inch (203.2 mm) thermoplastic cover strip; Membrane thickness minimum 0.080 inches (2.03 mm). material: 0.080" UltraPly TPO, Elevate PVC KEE XR, Elevate PVC KEE XRT, Elevate Max PVC XR
Connection size8" (203.2 mm) cover strip
End connectionWelded splice
MountingHeat welded
DimensionsMin. 0.080" (2.03 mm) membrane thickness; 1.5" (38.1 mm) extension past selvedge edge
Compliance30-Year Maximum Warranty.
