ElevatePTPMXR-RE-02 (PKEXR-RE-02) - THERMOPLASTIC XR ROOF EDGE WITH

Elevate Thermoplastic XR Roof Edge with Elevate EdgeGard+ Fascia (Roofing Edge Detail). Model PTPMXR-RE-02. Requires .080" (2.03 mm) minimum membrane thickness; Includes 3 1/2" (88.9 mm) wide splice plate at joints; Standard fascia not compatible with thermoplastic strip in membrane thicker than 0.060"; Oil canning recommended to use 0.050" or 0.063" for face heights above 8". material: .080" Ultraply TPO, Elevate PVC KEE XR, Elevate PVC KEE XRT, Elevate Max PVC XR

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPTPMXR-RE-02-PKEXR-RE-02---THERMOPLASTIC-XR-ROOF-EDGE-WITH.pdfData sheet

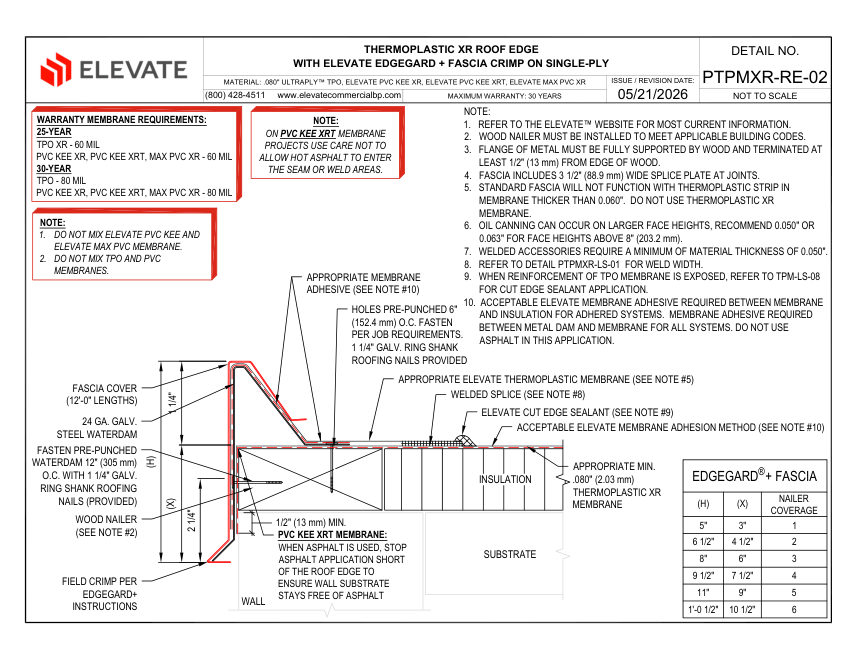

Elevate PTPMXR-RE-02 (PKEXR-RE-02) - THERMOPLASTIC XR ROOF EDGE WITH cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
PTPMXR-RE-02 (PKEXR-RE-02) - THERMOPLASTIC XR ROOF EDGE WITH
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPTPMXR-RE-02 (PKEXR-RE-02) - THERMOPLASTIC XR ROOF EDGE WITH
DescriptionElevate Thermoplastic XR Roof Edge with Elevate EdgeGard+ Fascia (Roofing Edge Detail). Model PTPMXR-RE-02. Requires .080" (2.03 mm) minimum membrane thickness; Includes 3 1/2" (88.9 mm) wide splice plate at joints; Standard fascia not compatible with thermoplastic strip in membrane thicker than 0.060"; Oil canning recommended to use 0.050" or 0.063" for face heights above 8". material: .080" Ultraply TPO, Elevate PVC KEE XR, Elevate PVC KEE XRT, Elevate Max PVC XR
End connectionWelded Splice
FinishGalvanized Steel Waterdam
MountingWood Nailer with 1 1/4" Galv. Ring Shank Roofing Nails
