ElevatePXBH-D-01 - ROOF DRAIN (TARGET PATCH REQUIRED) - FLEECE BACK

Elevate Roof Drain (Roofing). Model PXBH-D-01. Requires target patch for field seams within 9" (228.6 mm) of drain compression ring; Membrane hole must extend min 1/2" (13 mm) beyond clamping ring; Compatible with 60 mil TPO XR and 60 mil PVC KEE XR/XRT/Max PVC XR membranes; Requires ELEVATE Water Block min 1/2 of 10 oz. (295 ml) tube per 4" drain. material: Fleece backed thermoplastic and modified bitumen hybrid system (TPO XR, PVC KEE XR/XRT, Max PVC XR, Mod-Bit)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPXBH-D-01---ROOF-DRAIN-TARGET-PATCH-REQUIRED---FLEECE-BACK.pdfData sheet

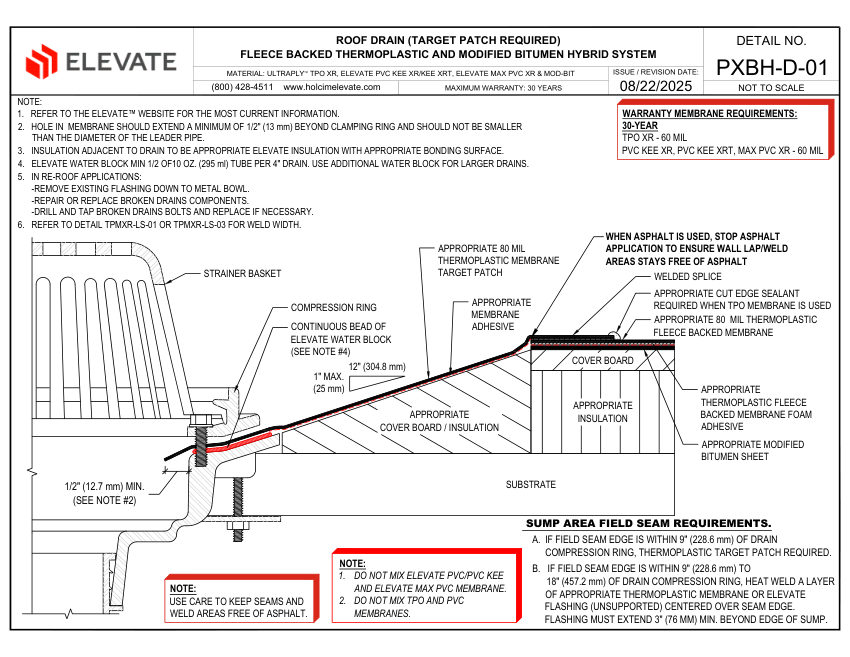

Elevate PXBH-D-01 - ROOF DRAIN (TARGET PATCH REQUIRED) - FLEECE BACK cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
PXBH-D-01 - ROOF DRAIN (TARGET PATCH REQUIRED) - FLEECE BACK
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPXBH-D-01 - ROOF DRAIN (TARGET PATCH REQUIRED) - FLEECE BACK
DescriptionElevate Roof Drain (Roofing). Model PXBH-D-01. Requires target patch for field seams within 9" (228.6 mm) of drain compression ring; Membrane hole must extend min 1/2" (13 mm) beyond clamping ring; Compatible with 60 mil TPO XR and 60 mil PVC KEE XR/XRT/Max PVC XR membranes; Requires ELEVATE Water Block min 1/2 of 10 oz. (295 ml) tube per 4" drain. material: Fleece backed thermoplastic and modified bitumen hybrid system (TPO XR, PVC KEE XR/XRT, Max PVC XR, Mod-Bit)
MountingCompression ring, strainer basket, target patch
DimensionsMembrane hole min 1/2" (13 mm) beyond clamping ring; compl
