DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateQS-METAL-2004 - UNACLAD UC-4 PANEL - WOOD DECK - 5-20 YEARS

Elevate Metal Roof Panel (Roofing System). Model QS-METAL-2004. Minimum slope requirement is 3:12; Building height limitation is 250 feet (76.2 m); Requires solid substrate such as plywood, OSB, or wood plank; Includes CLAD-GARD underlayment and UC bearing plates. material: Painted Steel, Painted Aluminum, Zincalume Plus, Copper

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFQS-METAL-2004---UNACLAD-UC-4-PANEL---WOOD-DECK---5-20-YEARS.pdfData sheet

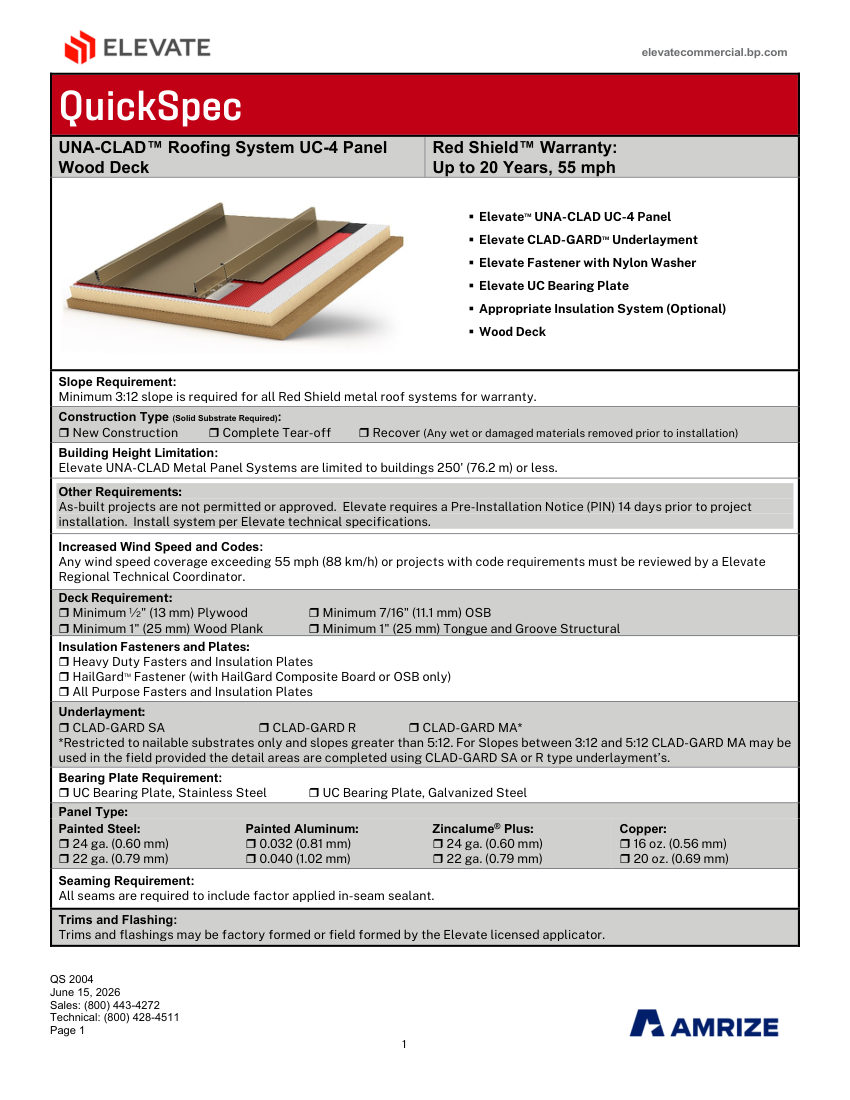

Elevate QS-METAL-2004 - UNACLAD UC-4 PANEL - WOOD DECK - 5-20 YEARS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
QS-METAL-2004 - UNACLAD UC-4 PANEL - WOOD DECK - 5-20 YEARS
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberQS-METAL-2004 - UNACLAD UC-4 PANEL - WOOD DECK - 5-20 YEARS
DescriptionElevate Metal Roof Panel (Roofing System). Model QS-METAL-2004. Minimum slope requirement is 3:12; Building height limitation is 250 feet (76.2 m); Requires solid substrate such as plywood, OSB, or wood plank; Includes CLAD-GARD underlayment and UC bearing plates. material: Painted Steel, Painted Aluminum, Zincalume Plus, Copper
FinishPainted, Zincalume Plus, Copper
MountingWood Deck
Dimensions24 ga. (0.60 mm), 22 ga. (0.79 mm), 0.032 (0.81 mm), 0.040 (1.02 mm), 16 oz. (0.56 mm), 20 oz. (0.69 mm)
ComplianceRed Shield Warranty Up to 20 Years, 55 mph.
