DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateQS-TPM-MBRM-01 - THERMOPLASTIC MEMBRANE PURLIN ATTACHED - ME

Elevate Thermoplastic Membrane Purlin Attached Metal Building Retrofit (Roofing System). Model QS-TPM-MBRM-01. Membrane options include UltraPly TPO (45-80 mil) and Elevate MAX PVC (50-80 mil)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFQS-TPM-MBRM-01---THERMOPLASTIC-MEMBRANE-PURLIN-ATTACHED---ME.pdfData sheet

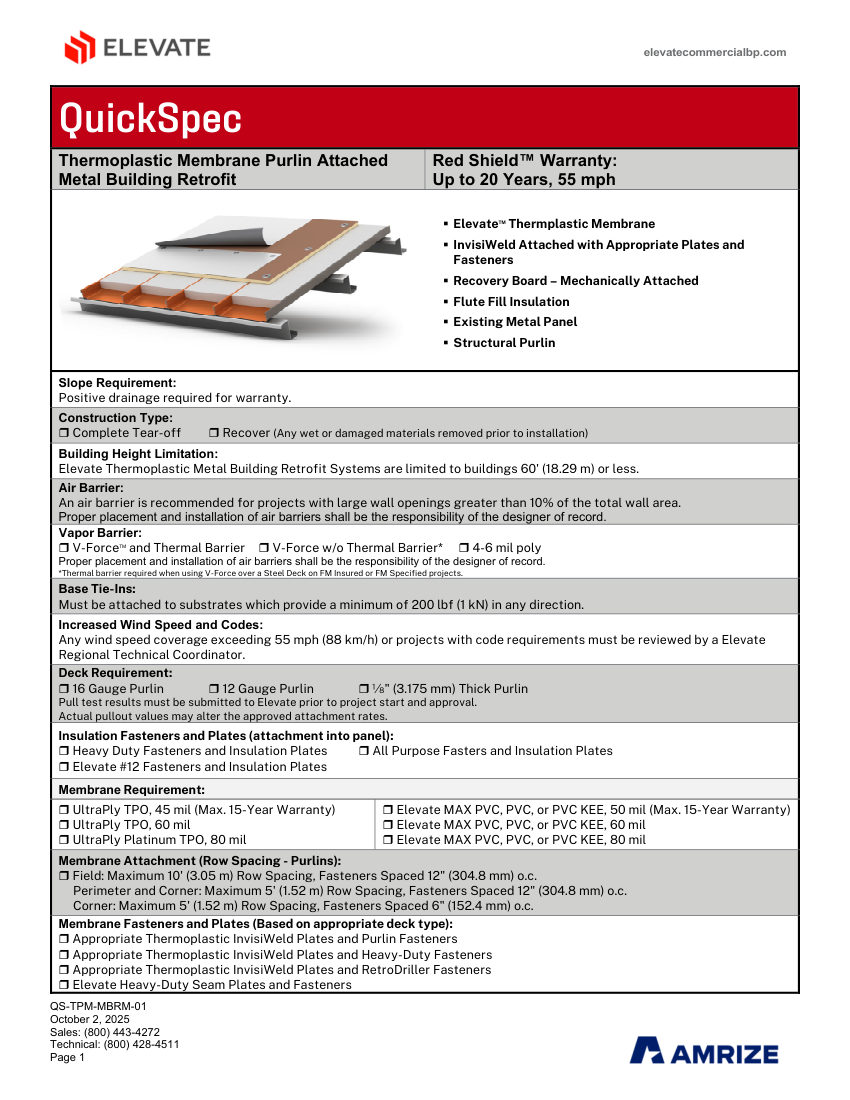

Elevate QS-TPM-MBRM-01 - THERMOPLASTIC MEMBRANE PURLIN ATTACHED - ME cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
QS-TPM-MBRM-01 - THERMOPLASTIC MEMBRANE PURLIN ATTACHED - ME
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberQS-TPM-MBRM-01 - THERMOPLASTIC MEMBRANE PURLIN ATTACHED - ME
DescriptionElevate Thermoplastic Membrane Purlin Attached Metal Building Retrofit (Roofing System). Model QS-TPM-MBRM-01. Membrane options include UltraPly TPO (45-80 mil) and Elevate MAX PVC (50-80 mil)
Deck requirement16 Gauge, 12 Gauge, or 1/8" Thick Purlin; Field row spacing max 10' (3.05 m) with fasteners spaced 12" (304.8 mm) o.c.; Base tie-ins must provide minimum 200 lbf (1 kN) in any direction. material: Thermoplastic Membrane (TPO/PVC), Recovery Board, Flute Fill Insulation
Connection size1.5" (38.1 mm) Single Weld System
End connectionInvisiWeld Attached with Plates and Fasteners; mount
