DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateRE-02 - RUBBERGARD EPDM ROOF EDGE WITH ANCHORGARD SP FASCIA

Elevate EPDM Roof Edge System (Roofing). Model RE-02. Detail No. RE-02; Compatible with Elevate RubberGard EPDM membrane; Includes Anchorgard SP Fascia and Quickseam RPF strip; Fascia cover lengths are 12 feet (3.66 m). material: RubberGard EPDM or Max EPDM, Anchorgard SP Fascia, Quickseam RPF

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFRE-02---RUBBERGARD-EPDM-ROOF-EDGE-WITH-ANCHORGARD-SP-FASCIA.pdfData sheet

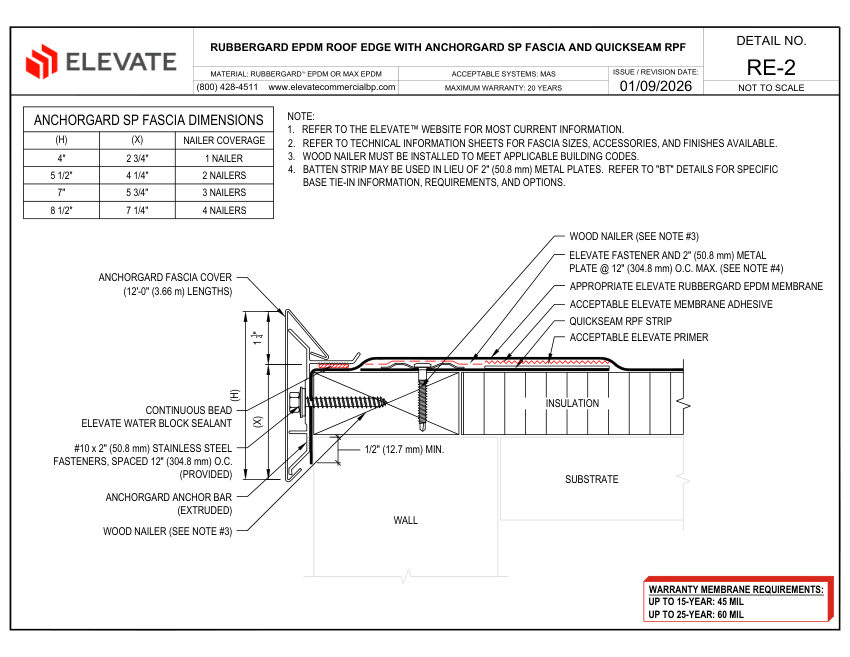

Elevate RE-02 - RUBBERGARD EPDM ROOF EDGE WITH ANCHORGARD SP FASCIA cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
RE-02 - RUBBERGARD EPDM ROOF EDGE WITH ANCHORGARD SP FASCIA
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberRE-02 - RUBBERGARD EPDM ROOF EDGE WITH ANCHORGARD SP FASCIA
DescriptionElevate EPDM Roof Edge System (Roofing). Model RE-02. Detail No. RE-02; Compatible with Elevate RubberGard EPDM membrane; Includes Anchorgard SP Fascia and Quickseam RPF strip; Fascia cover lengths are 12 feet (3.66 m). material: RubberGard EPDM or Max EPDM, Anchorgard SP Fascia, Quickseam RPF
Connection size12'-0" (3.66 m) lengths
End connectionWood Nailer, Elevate Fastener, 2" (50.8 mm) Metal Plate
MountingFastened to wood nailer with #10 x 2" stainless steel fasteners @ 12" O.C.
DimensionsFascia Heights: 4", 5 1/2", 7", 8 1/2"
Compliance20-Year Maximum Warranty.
