DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateRE-11 - RUBBERGARD EPDM ROOF EDGE WITH EDGEGARD+ FASCIA SNAP

Elevate EPDM Roof Edge with Fascia (Roofing Edge Detail). Model RE-11. Includes Edgeguard+ Fascia Snap-On Version and Quickseam RPF Strip

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFRE-11---RUBBERGARD-EPDM-ROOF-EDGE-WITH-EDGEGARD-FASCIA-SNAP.pdfData sheet

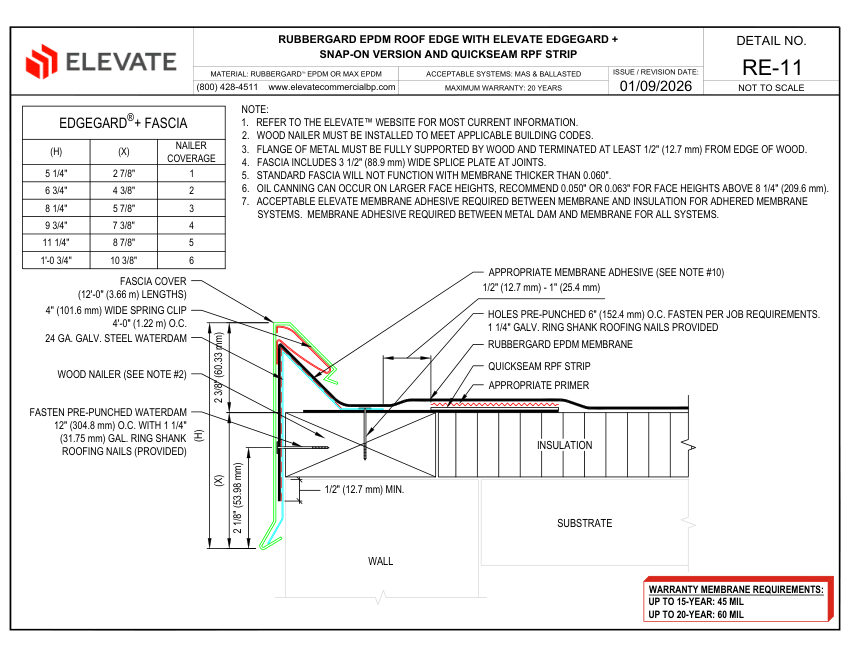

Elevate RE-11 - RUBBERGARD EPDM ROOF EDGE WITH EDGEGARD+ FASCIA SNAP cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
RE-11 - RUBBERGARD EPDM ROOF EDGE WITH EDGEGARD+ FASCIA SNAP
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberRE-11 - RUBBERGARD EPDM ROOF EDGE WITH EDGEGARD+ FASCIA SNAP
DescriptionElevate EPDM Roof Edge with Fascia (Roofing Edge Detail). Model RE-11. Includes Edgeguard+ Fascia Snap-On Version and Quickseam RPF Strip
Acceptable systemsMAS & Ballasted; Standard fascia compatible with membrane thickness up to 0.060"; Fascia includes 3 1/2" (88.9 mm) wide splice plate at joints. material: Rubbergard EPDM or Max EPDM, 24 ga. galv. steel waterdam
End connectionSnap-on fascia, spring clip
FinishGalvanized
MountingWood nailer, pre-punched waterdam
DimensionsFascia lengths 12'-0" (3.66 m), face heights 5 1/4" to 1'-0 3/4"
Compliance20-year maximum warranty.
