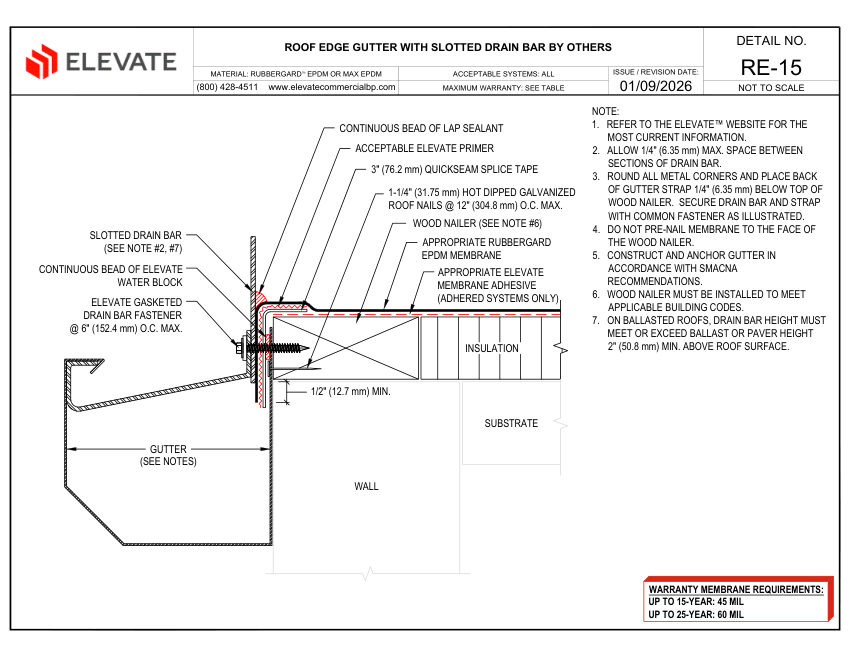

ElevateRE-15 - ROOF EDGE GUTTER WITH SLOTTED DRAIN BAR

Name: Elevate RE-15 - ROOF EDGE GUTTER WITH SLOTTED DRAIN BAR
Brand: Elevate
SKU: RE-15 - ROOF EDGE GUTTER WITH SLOTTED DRAIN BAR

Elevate Roof Edge Gutter with Slotted Drain Bar (Roofing). Model RE-15. Material: RubberGard EPDM or Max EPDM

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	RE-15 - ROOF EDGE GUTTER WITH SLOTTED DRAIN BAR
Description	Elevate Roof Edge Gutter with Slotted Drain Bar (Roofing). Model RE-15. Material: RubberGard EPDM or Max EPDM
Drain bar spacing	1/4" (6.35 mm) max between sections
Fastening	1-1/4" hot dipped galvanized roof nails @ 12" O.C. max; Ballasted roof requirement: Drain bar height must meet or exceed ballast/paver height. material: RubberGard EPDM or Max EPDM
Mounting	Hot dipped galvanized roof nails @ 12" O.C. max; Gasketed drain bar fastener @ 6" O.C. max
Dimensions	1/4" max space between drain bar sections; 2" min above roof surface on ballasted roofs
Compliance	SMACNA recommendations.
