DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateS-01 - THRU-WALL SCUPPER (WELDED SLEEVE)

Elevate Thru-Wall Scupper (Roofing Detail). Model S-01. Requires welded metal scupper sleeve with rounded corners; Compatible with all acceptable Elevate systems; Includes 5" (127 mm) Quickseam Flashing centered over scupper flange; Includes 9" (228.6 mm) Quickseam Formflash centered over 5" flashing. material: Welded Metal Sleeve, RubberGard EPDM or Max EPDM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFS-01---THRU-WALL-SCUPPER-WELDED-SLEEVE.pdfData sheet

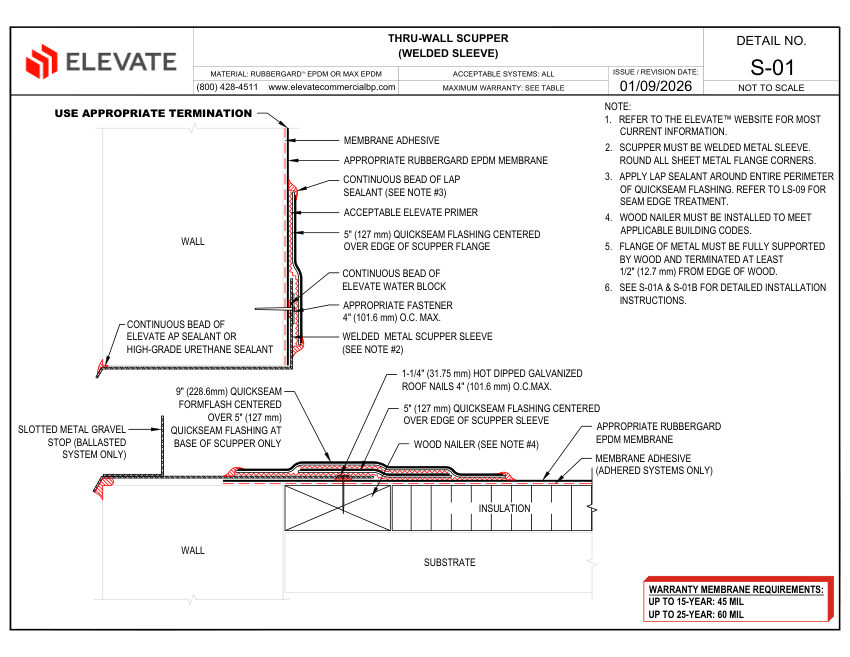

Elevate S-01 - THRU-WALL SCUPPER (WELDED SLEEVE) cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
S-01 - THRU-WALL SCUPPER (WELDED SLEEVE)
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberS-01 - THRU-WALL SCUPPER (WELDED SLEEVE)
DescriptionElevate Thru-Wall Scupper (Roofing Detail). Model S-01. Requires welded metal scupper sleeve with rounded corners; Compatible with all acceptable Elevate systems; Includes 5" (127 mm) Quickseam Flashing centered over scupper flange; Includes 9" (228.6 mm) Quickseam Formflash centered over 5" flashing. material: Welded Metal Sleeve, RubberGard EPDM or Max EPDM
FinishHot Dipped Galvanized (Nails)
MountingWelded to wall, Fastened with 1-1/4" Hot Dipped Galvanized Roof Nails
Dimensions5" (127 mm) Quickseam Flashing, 9" (228.6 mm) Quickseam Formflash
ComplianceApplicable Building Codes.
