DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateT-04 - TERMINATION WITH REGLET COUNTER-FLASHING AND TERMINAT

Elevate Termination with Reglet Counter-Flashing and Termination Bar (Roofing Termination). Model T-04. Material: RubberGard EPDM or Max EPDM; Counter-flashing: 24 gauge pre-finished steel or .032" min aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFT-04---TERMINATION-WITH-REGLET-COUNTER-FLASHING-AND-TERMINAT.pdfData sheet

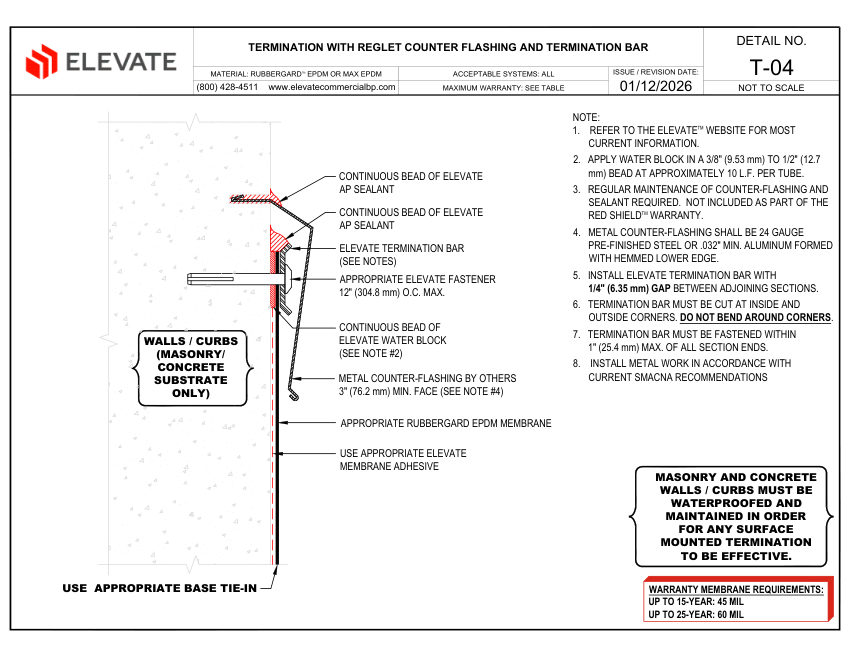

Elevate T-04 - TERMINATION WITH REGLET COUNTER-FLASHING AND TERMINAT cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
T-04 - TERMINATION WITH REGLET COUNTER-FLASHING AND TERMINAT
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberT-04 - TERMINATION WITH REGLET COUNTER-FLASHING AND TERMINAT
DescriptionElevate Termination with Reglet Counter-Flashing and Termination Bar (Roofing Termination). Model T-04. Material: RubberGard EPDM or Max EPDM; Counter-flashing: 24 gauge pre-finished steel or .032" min aluminum
SealantContinuous bead of Elevate AP Sealant
Membrane thickness45 mil (up to 15-year warranty) or 60 mil (up to 25-year warranty). material: RubberGard EPDM or Max EPDM
MountingSurface mounted on masonry/concrete walls or curbs
DimensionsCounter-flashing face 3" (76.2 mm) min; Termination bar gap 1/4" (6.35 mm); Fastener spacing 12" (304.8 mm) O.C. max
ComplianceSMACNA Re
