ElevateT-13 - TERMINATION AT TOP OF WALL WITH ELEVATE ANCHORGARD ST

Elevate Wall Termination Detail (Roofing & Waterproofing). Model T-13. Detail No. T-13: Termination at top of wall with Elevate Anchorgard Standard; Compatible with all Elevate systems; Requires 1/2" (12.7 mm) minimum clearance on both sides of the bar; Warranty membrane requirements: 45 mil for up to 15-year, 60 mil for up to 25-year. material: RubberGard EPDM or Max EPDM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFT-13---TERMINATION-AT-TOP-OF-WALL-WITH-ELEVATE-ANCHORGARD-ST.pdfData sheet

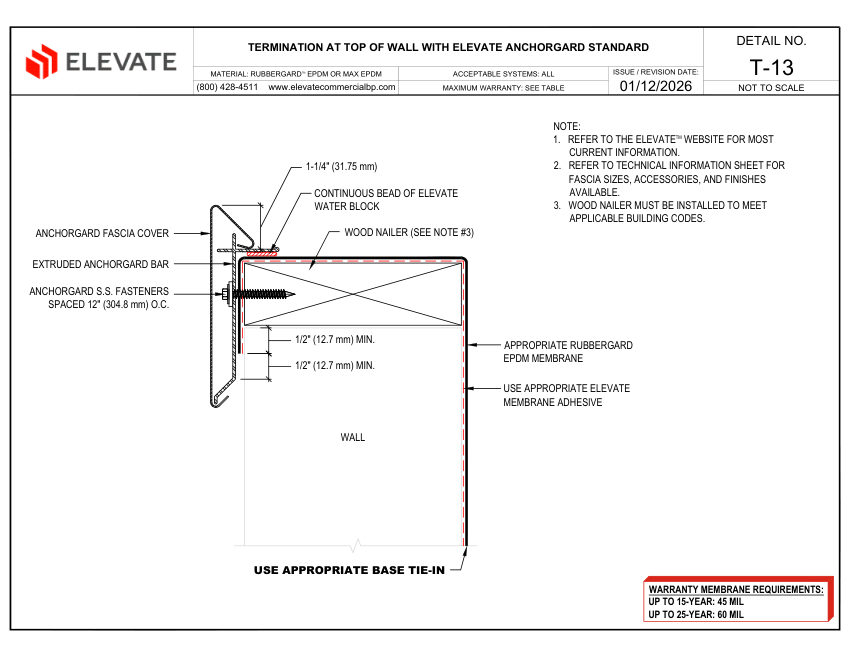

Elevate T-13 - TERMINATION AT TOP OF WALL WITH ELEVATE ANCHORGARD ST cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
T-13 - TERMINATION AT TOP OF WALL WITH ELEVATE ANCHORGARD ST
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberT-13 - TERMINATION AT TOP OF WALL WITH ELEVATE ANCHORGARD ST
DescriptionElevate Wall Termination Detail (Roofing & Waterproofing). Model T-13. Detail No. T-13: Termination at top of wall with Elevate Anchorgard Standard; Compatible with all Elevate systems; Requires 1/2" (12.7 mm) minimum clearance on both sides of the bar; Warranty membrane requirements: 45 mil for up to 15-year, 60 mil for up to 25-year. material: RubberGard EPDM or Max EPDM
MountingExtruded Anchorgard Bar with S.S. Fasteners spaced 12" O.C.
Dimensions1-1/4" (31.75 mm) continuous bead of Elevate Water Block
ComplianceWood nailer must meet applicable building codes.
