DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTIS 1013 - ISOFAST #12 BELTED FASTENERS & INSULATION PLATES

Elevate Belted Fasteners and Insulation Plates (Roofing Fasteners). Model W56RACB22A, W56RACB22B, W56RACB23A, W56RACB23B, W56RACB24A, W56RACB25A, W56RACB26A, W56RACBPIN. Designed for attachment of insulation to steel (18-22 gage) and wood

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTIS-1013---ISOFAST-12-BELTED-FASTENERS-INSULATION-PLATES.pdfData sheet

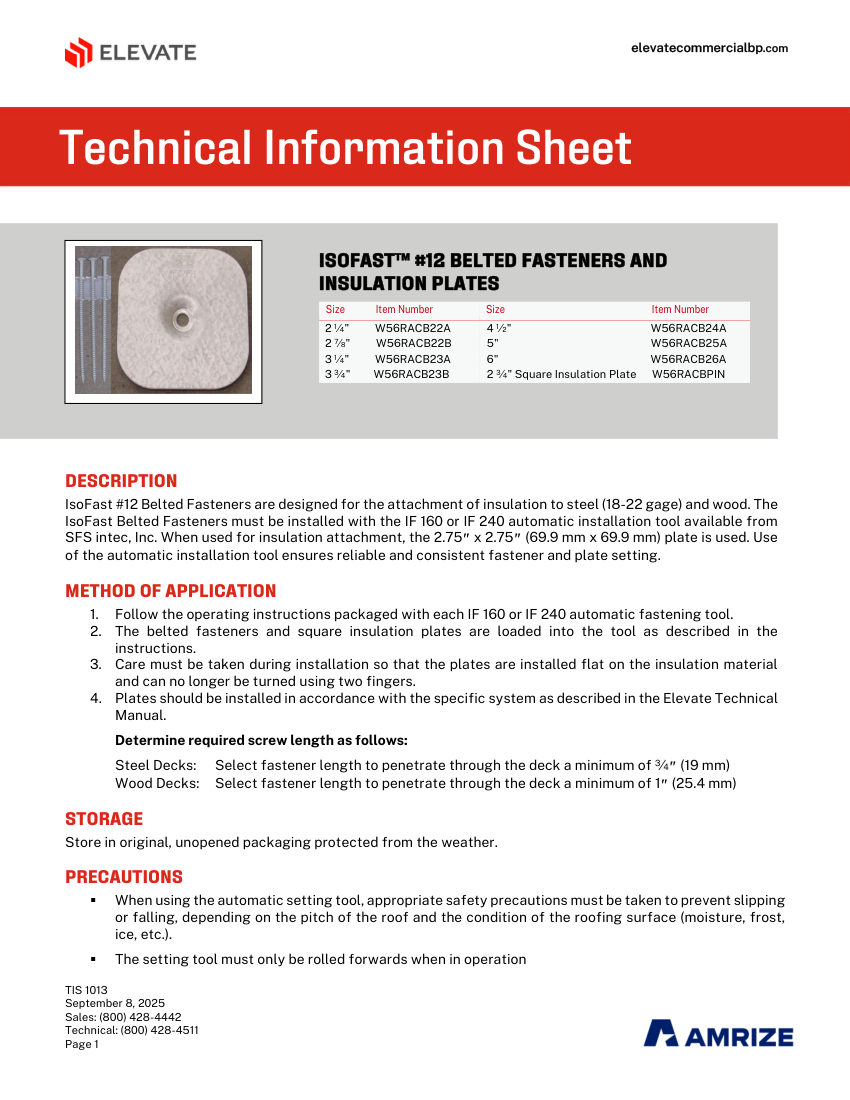

Elevate TIS 1013 - ISOFAST #12 BELTED FASTENERS & INSULATION PLATES cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TIS 1013 - ISOFAST #12 BELTED FASTENERS & INSULATION PLATES
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTIS 1013 - ISOFAST #12 BELTED FASTENERS & INSULATION PLATES
DescriptionElevate Belted Fasteners and Insulation Plates (Roofing Fasteners). Model W56RACB22A, W56RACB22B, W56RACB23A, W56RACB23B, W56RACB24A, W56RACB25A, W56RACB26A, W56RACBPIN. Designed for attachment of insulation to steel (18-22 gage) and wood
Pull Through ResistanceMin. 400 lb (181.4 kg)
Plate Thickness0.019" (.48 mm)
Fastener Head Diameter0.448" (11.4 mm). material: Low carbon steel (Plate), Case hardened carbon steel (Fastener)
Connection size2 ¼" to 6" (Fastener Length)
End connection#3 Phillips Head, Pinch Point
FinishAZ 50 Galvalume (Plate), Gray Sentri XP (Fastener); mounting
