DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTIS 1014 - ISOFAST #15 BELTED FASTENER

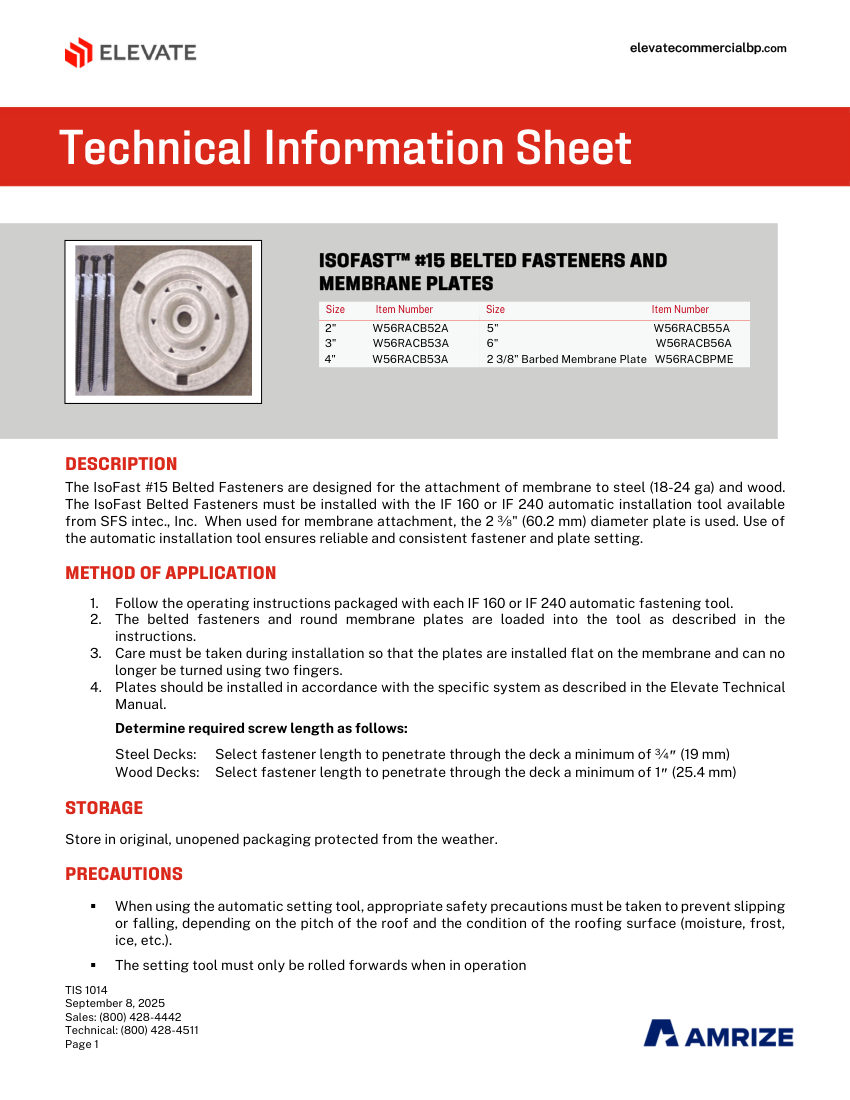

Name: Elevate TIS 1014 - ISOFAST #15 BELTED FASTENER
Brand: Elevate
SKU: TIS 1014 - ISOFAST #15 BELTED FASTENER

Elevate Belted Fastener (Roofing Fasteners). Model ISOFAST #15. Designed for attachment of membrane to steel (18-24 ga) and wood

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	TIS 1014 - ISOFAST #15 BELTED FASTENER
Description	Elevate Belted Fastener (Roofing Fasteners). Model ISOFAST #15. Designed for attachment of membrane to steel (18-24 ga) and wood
Pull Through Resistance	Min. 400 lb (181.4 kg)
Plate Thickness	0.042" (1.0 mm); Requires IF 160 or IF 240 automatic installation tool. material: Low carbon steel, AZ 50 Galvalume
Connection size	2" to 6"
End connection	#3 Phillips head, Reduce drill point
Finish	AZ 50 Galvalume
Mounting	Automatic installation tool (IF 160 or IF 240)
Dimensions	Thread Diameter 0.263" (6.7 mm), Shank Diameter 0.204" (5.2 mm), Head Diameter 0.448" (11.4 mm).
