DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTIS 1023 - UNA CLAD #10 FASTENER

Elevate Self-drilling and self-tapping screws (Roofing Fasteners). Model TIS 1023. Designed for metal roofing applications requiring additional depth of attachment; Self-drilling for 18 ga – 3/16" steel; Self-tapping for wood and light gauge metal

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTIS-1023---UNA-CLAD-10-FASTENER.pdfData sheet

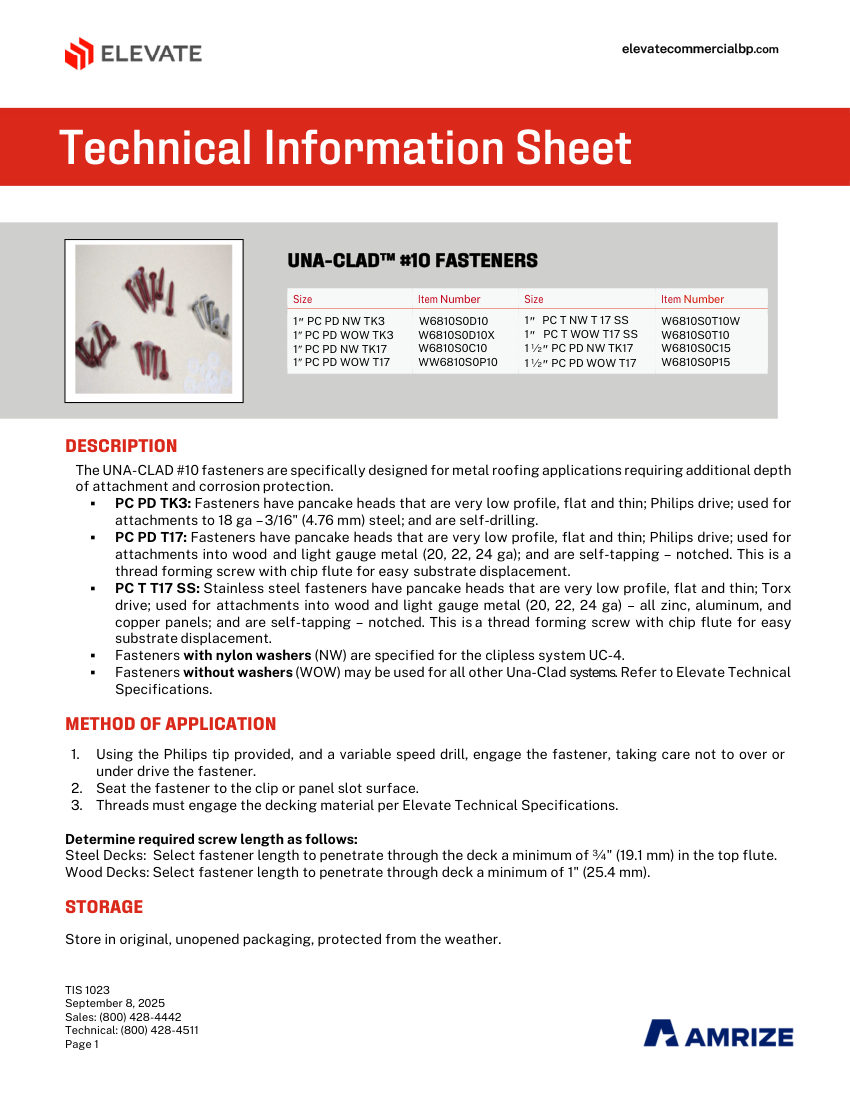

Elevate TIS 1023 - UNA CLAD #10 FASTENER cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TIS 1023 - UNA CLAD #10 FASTENER
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTIS 1023 - UNA CLAD #10 FASTENER
DescriptionElevate Self-drilling and self-tapping screws (Roofing Fasteners). Model TIS 1023. Designed for metal roofing applications requiring additional depth of attachment; Self-drilling for 18 ga – 3/16" steel; Self-tapping for wood and light gauge metal
Pullout strength685 lb (310.65 kg) in new 1/2" plywood deck; Available with nylon washers (NW) for clipless system UC-4 or without (WOW). material: SAE 1022 heat treated steel, Stainless steel
Connection size1" (25.4 mm), 1 1/2" (38.1 mm)
End connectionPancake head, #2 Phillips Drive, T-25 6-lobe recess
FinishRed epoxy electrocoating; mount
