ElevateTIS 1050 - RETRODRILLER FASTENER

Elevate Purlin Fastener (RetroDriller Fastener). Model W56RACRD04-W56RACRD12. Designed for attaching single-ply membrane systems to structural steel purlins up to 3/16" (4.78 mm) thick; Features a 7/16" (11.13 mm) drill point for quick drilling into purlins; Requires minimum 1" (25.4 mm) penetration through the purlin; Low-profile head with smooth surface to prevent membrane damage. material: Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTIS-1050---RETRODRILLER-FASTENER.pdfData sheet

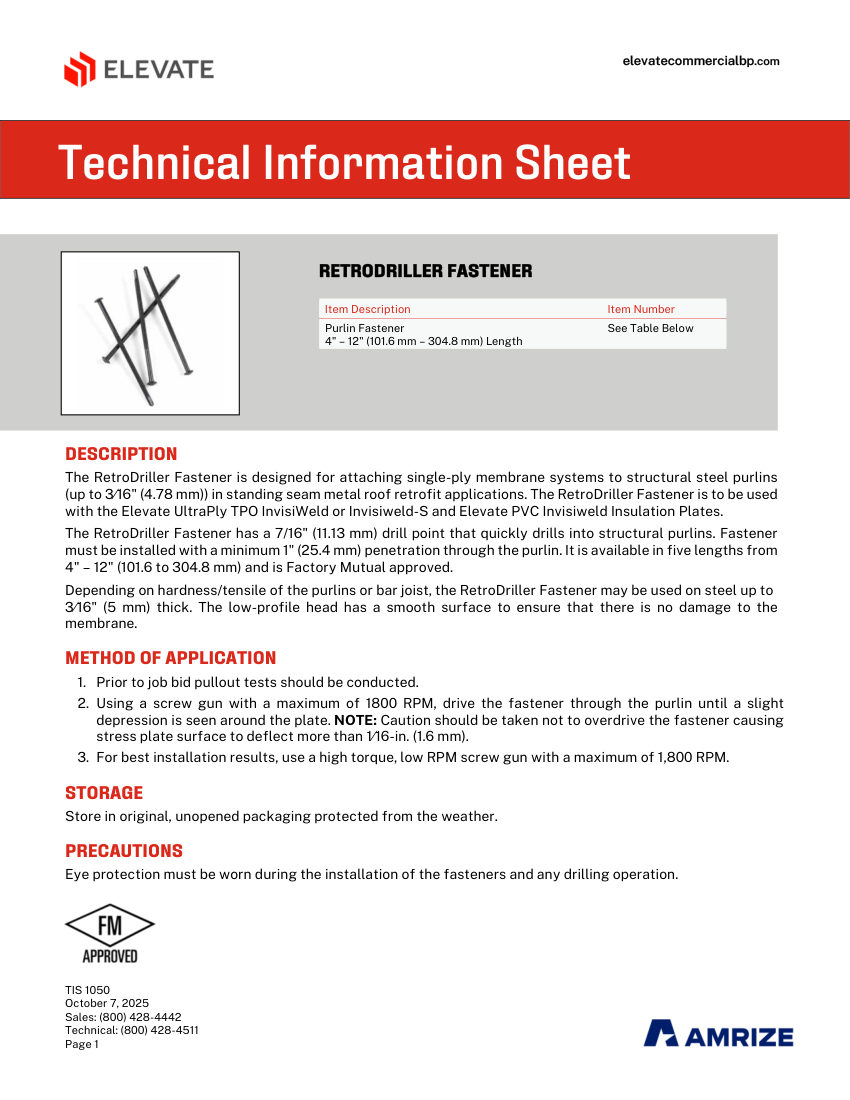

Elevate TIS 1050 - RETRODRILLER FASTENER cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TIS 1050 - RETRODRILLER FASTENER
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTIS 1050 - RETRODRILLER FASTENER
DescriptionElevate Purlin Fastener (RetroDriller Fastener). Model W56RACRD04-W56RACRD12. Designed for attaching single-ply membrane systems to structural steel purlins up to 3/16" (4.78 mm) thick; Features a 7/16" (11.13 mm) drill point for quick drilling into purlins; Requires minimum 1" (25.4 mm) penetration through the purlin; Low-profile head with smooth surface to prevent membrane damage. material: Steel
Connection size4" – 12" (101.6 mm – 304.8 mm) Length
End connection#3 Square Drive Truss Head
FinishCoated, Meets FM 4470 Requirements
MountingScrew gun (max 1800 RPM)
DimensionsHead: 0
