DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTIS 1403 - QUICKSEAM REINFORCED PERIMETER FASTENING (RPF) ST

Elevate Reinforced Perimeter Fastening Strip (Roofing Membrane Accessories). Model W56RAC1632. 6" (152 mm) wide RubberGard MAX membrane with 3" (76 mm) QuickSeam Tape

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTIS-1403---QUICKSEAM-REINFORCED-PERIMETER-FASTENING-RPF-ST.pdfData sheet

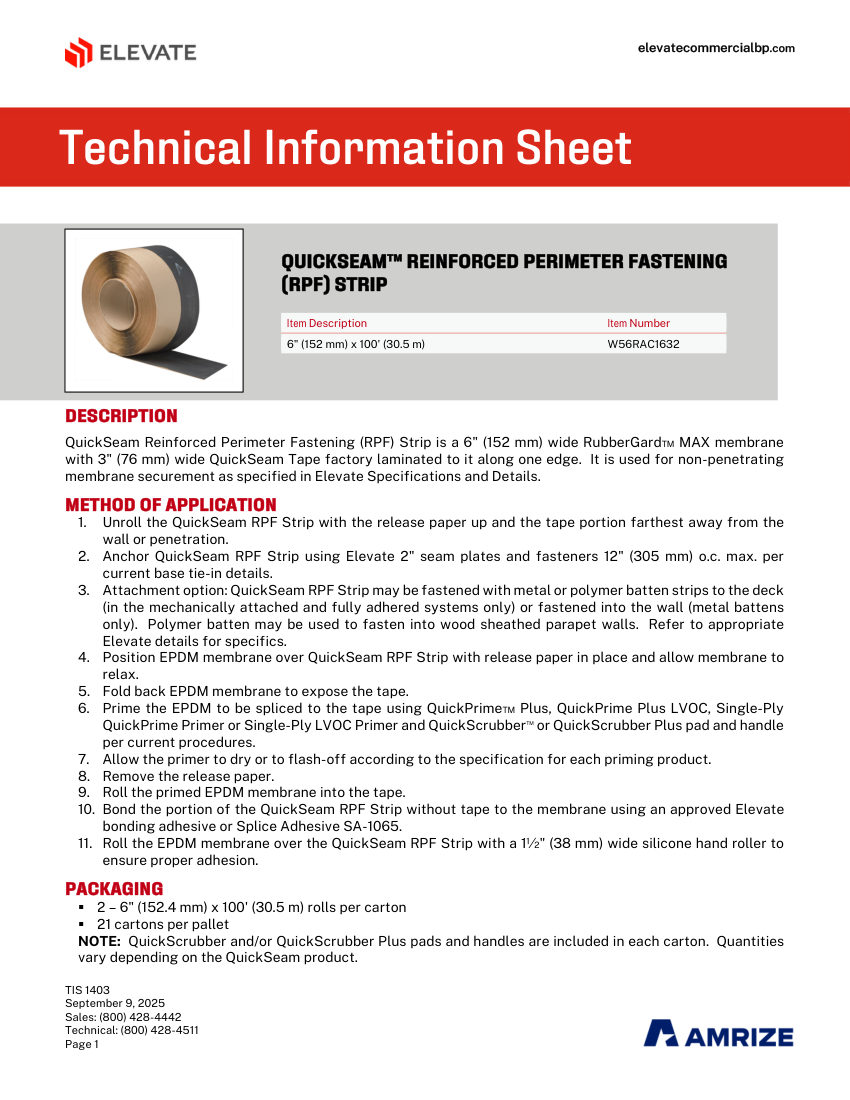

Elevate TIS 1403 - QUICKSEAM REINFORCED PERIMETER FASTENING (RPF) ST cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TIS 1403 - QUICKSEAM REINFORCED PERIMETER FASTENING (RPF) ST
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTIS 1403 - QUICKSEAM REINFORCED PERIMETER FASTENING (RPF) ST
DescriptionElevate Reinforced Perimeter Fastening Strip (Roofing Membrane Accessories). Model W56RAC1632. 6" (152 mm) wide RubberGard MAX membrane with 3" (76 mm) QuickSeam Tape
Length100' (30.5 m) per roll
Rubber Gard MAX thickness0.060" (1.52 mm) ± 10%
Quick Seam Tape thickness0.030" (0.77 mm) ± 0.007". material: RubberGard MAX (EPDM) with QuickSeam Tape (Rubber Polymers)
Connection size6" (152 mm) wide
End connectionFactory laminated tape edge
FinishBlack
MountingNon-penetrating securement via seam plates or batten strips
Dimensions6" (152 mm) x 100' (30.5 m).
