ElevateTIS 1409 - QUICKSEAM PIPE FLASHING

Elevate Pipe Flashing (Roofing Flashing). Model W563581063. Designed for RubberGard EPDM, APP, and SBS Modified Bitumen systems; Universal fit for pipe outside diameters from 1" to 6.875"; Includes stainless steel worm gear clamp; Tape base is 100% solids rubber polymer. material: Molded EPDM, Rubber Polymer Tape, Stainless Steel Clamp

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTIS-1409---QUICKSEAM-PIPE-FLASHING.pdfData sheet

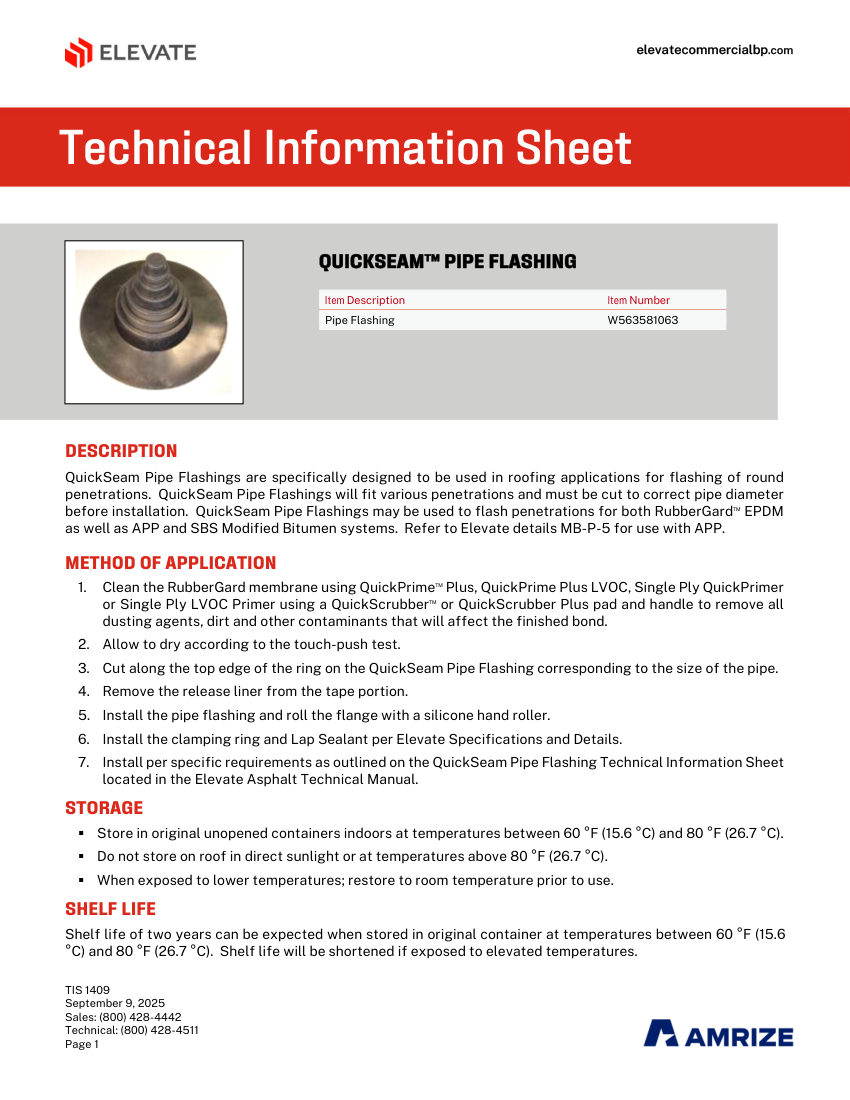

Elevate TIS 1409 - QUICKSEAM PIPE FLASHING cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TIS 1409 - QUICKSEAM PIPE FLASHING
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTIS 1409 - QUICKSEAM PIPE FLASHING
DescriptionElevate Pipe Flashing (Roofing Flashing). Model W563581063. Designed for RubberGard EPDM, APP, and SBS Modified Bitumen systems; Universal fit for pipe outside diameters from 1" to 6.875"; Includes stainless steel worm gear clamp; Tape base is 100% solids rubber polymer. material: Molded EPDM, Rubber Polymer Tape, Stainless Steel Clamp
Connection size1" O.D. to 6.875" O.D. (25.4 mm to 174.6 mm)
End connectionWorm gear clamp
FinishBlack
MountingAdhesive tape and clamping ring
Dimensions13" (33 cm) outside diameter flange; 0.055"-0.075" (1.4 mm – 1.9 mm) thickness.
