ElevateTIS 1414 - QUICKSEAM RMA STRIP

Elevate EPDM Membrane Securement Strip (Roofing Membrane Accessory). Model W56RAC1633. 10" (254 mm) wide EPDM membrane with two 3" (76 mm) wide QuickSeam tape strips

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTIS-1414---QUICKSEAM-RMA-STRIP.pdfData sheet

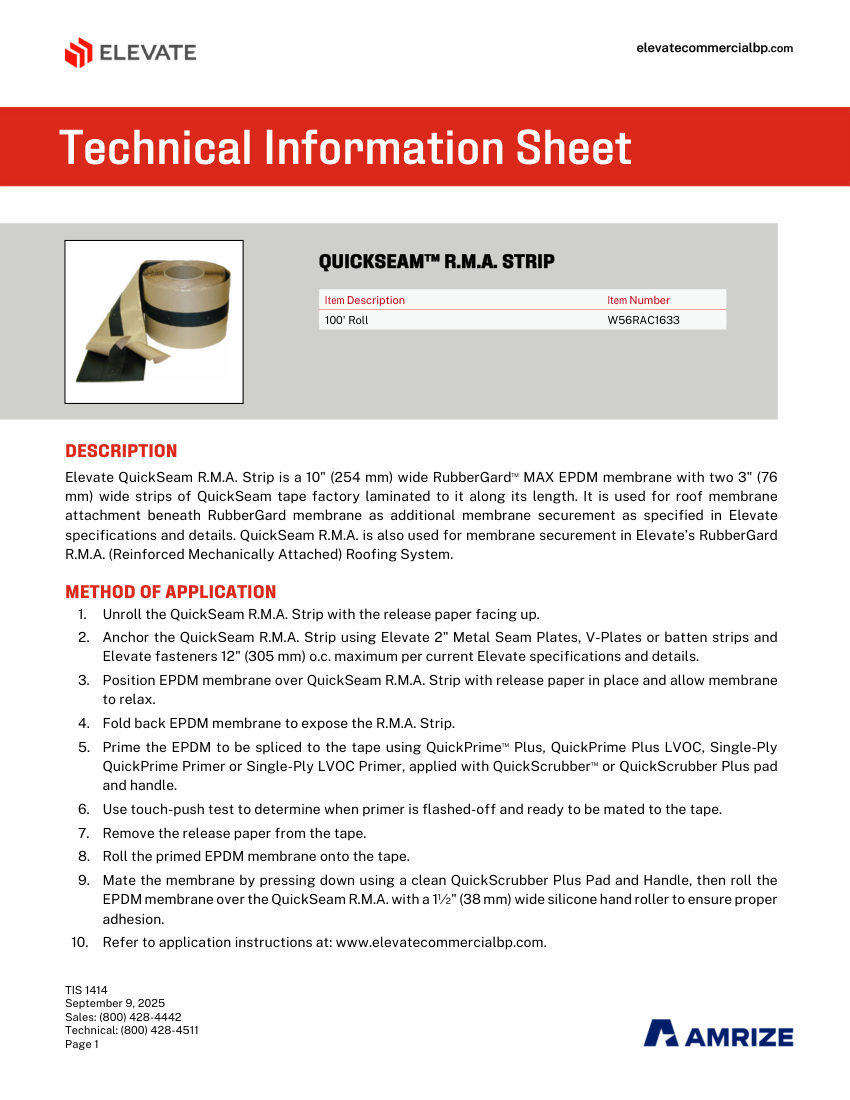

Elevate TIS 1414 - QUICKSEAM RMA STRIP cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TIS 1414 - QUICKSEAM RMA STRIP
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTIS 1414 - QUICKSEAM RMA STRIP
DescriptionElevate EPDM Membrane Securement Strip (Roofing Membrane Accessory). Model W56RAC1633. 10" (254 mm) wide EPDM membrane with two 3" (76 mm) wide QuickSeam tape strips
Membrane thickness0.060" (1.52 mm) ± 20%
Tape thickness0.025" (0.63 mm) ± 0.007" (0.18 mm)
Shelf life24 months at 60°F-80°F (16°C-27°C). material: RubberGard MAX EPDM membrane with QuickSeam tape
FinishBlack
MountingMechanically attached with metal seam plates, V-plates, or batten strips
Dimensions100' (30.5 m) roll, 10" (254 mm) wide
ComplianceLEED Post-Consumer Recycled Content: 0%.
