ElevateTIS 1502 - RUBBERGARD EPDM PIPE FLASHING

Elevate EPDM Pipe Flashing (Roofing Flashing). Model W563581063. Designed for flashing round penetrations in roofing applications; Fits pipe outside diameters from 1" to 6.875"; Includes stainless steel worm gear clamps; Requires Elevate Splice Adhesive SA-1065 for installation. material: Molded EPDM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTIS-1502---RUBBERGARD-EPDM-PIPE-FLASHING.pdfData sheet

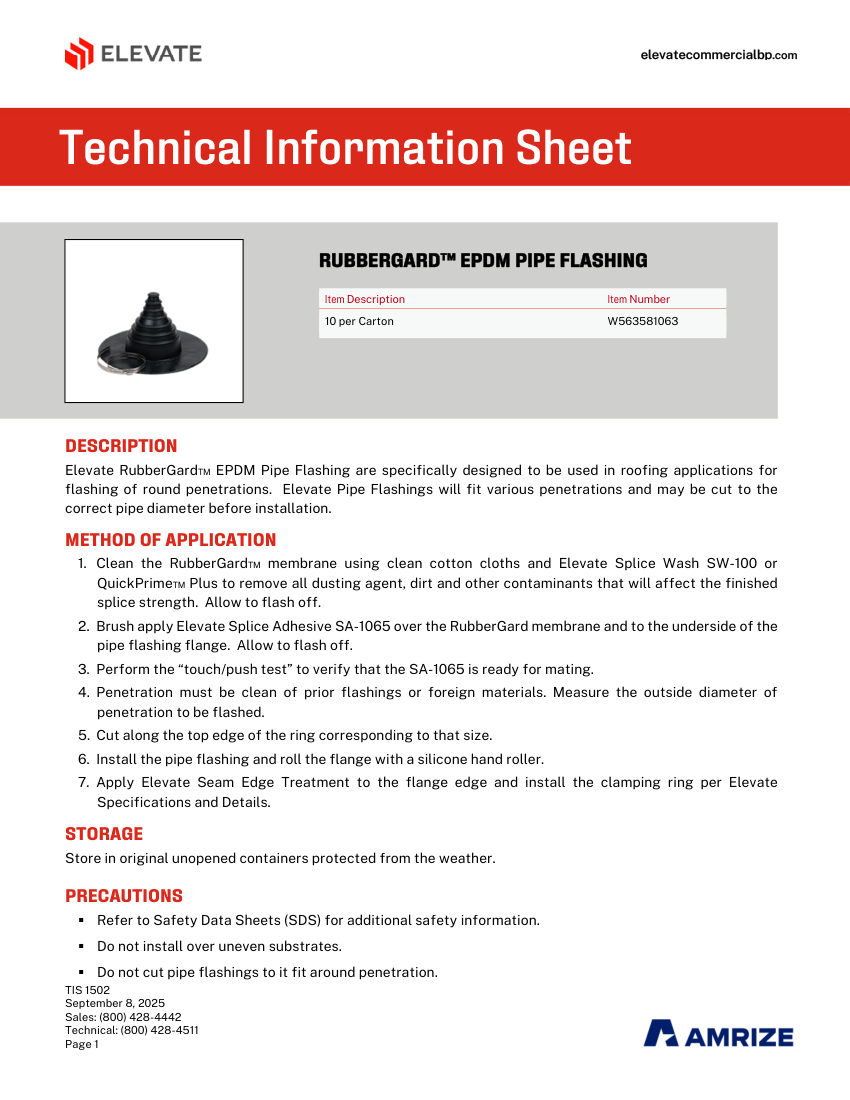

Elevate TIS 1502 - RUBBERGARD EPDM PIPE FLASHING cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TIS 1502 - RUBBERGARD EPDM PIPE FLASHING
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTIS 1502 - RUBBERGARD EPDM PIPE FLASHING
DescriptionElevate EPDM Pipe Flashing (Roofing Flashing). Model W563581063. Designed for flashing round penetrations in roofing applications; Fits pipe outside diameters from 1" to 6.875"; Includes stainless steel worm gear clamps; Requires Elevate Splice Adhesive SA-1065 for installation. material: Molded EPDM
Connection sizeUniversal – Fits 1" O.D. to 6.875" O.D. (25.4 mm – 174.6 mm)
End connectionStainless Steel worm gear clamp
FinishBlack
MountingAdhesive applied to RubberGard membrane
DimensionsPipe Flange O.D. 13" (330 mm); Thickness 0.055" - 0.075" (1.4 mm - 1.9 mm).
