ElevateTIS 1513 - ELEVATE DRAIN INSERT

Elevate Roof Drain Insert (Roofing). Model W56RAC2713, W56RAC2714, W56RAC2716. Designed for Elevate roofing systems to adapt existing drains; Flange is spun 0.060" (1.5 mm) thick with 22,000 psi tensile strength; Tube body is constant diameter extruded aluminum with fusion welded joints; Dome is die-cast aluminum with red powder coated epoxy finish. material: Aluminum alloy, Stainless steel, Synthetic rubber

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTIS-1513---ELEVATE-DRAIN-INSERT.pdfData sheet

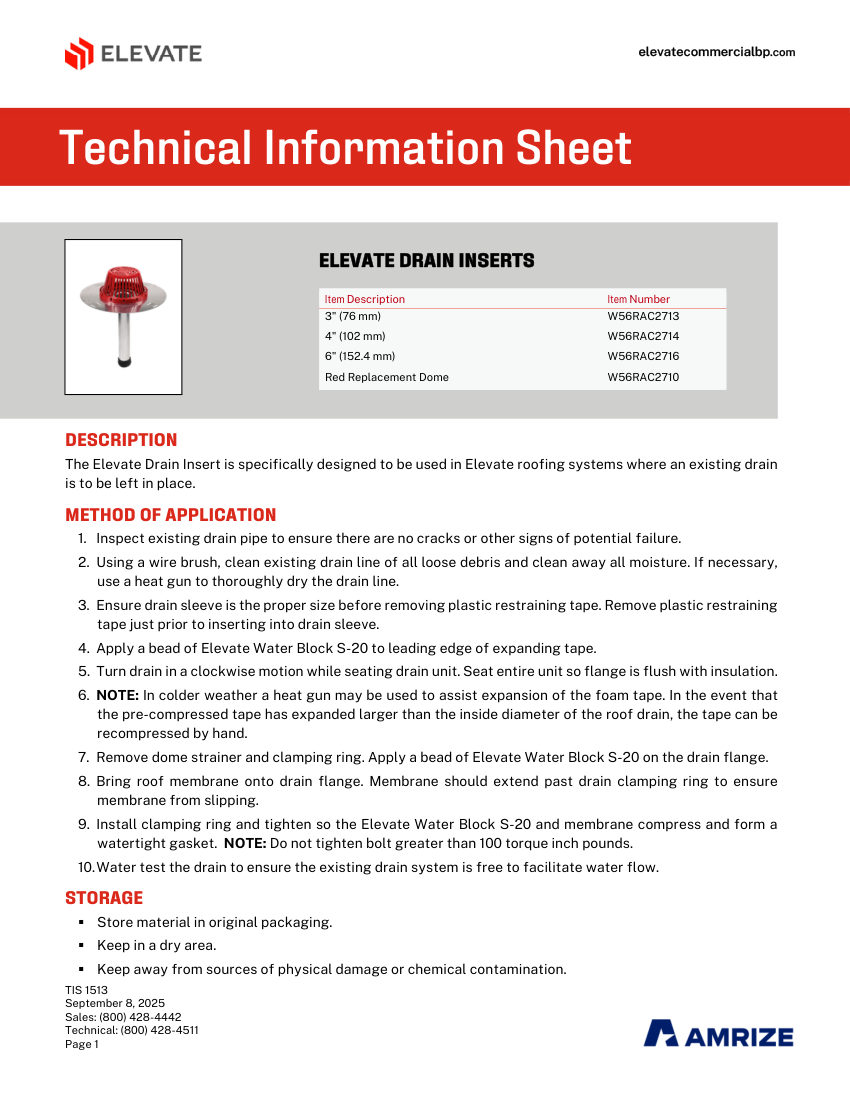

Elevate TIS 1513 - ELEVATE DRAIN INSERT cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TIS 1513 - ELEVATE DRAIN INSERT
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTIS 1513 - ELEVATE DRAIN INSERT
DescriptionElevate Roof Drain Insert (Roofing). Model W56RAC2713, W56RAC2714, W56RAC2716. Designed for Elevate roofing systems to adapt existing drains; Flange is spun 0.060" (1.5 mm) thick with 22,000 psi tensile strength; Tube body is constant diameter extruded aluminum with fusion welded joints; Dome is die-cast aluminum with red powder coated epoxy finish. material: Aluminum alloy, Stainless steel, Synthetic rubber
Connection size3" (76 mm), 4" (102 mm), 6" (152.4 mm)
End connectionClamping ring with studs and nuts
FinishRed powder coated epoxy (Dome)
MountingFlush mounting with pre-punched
