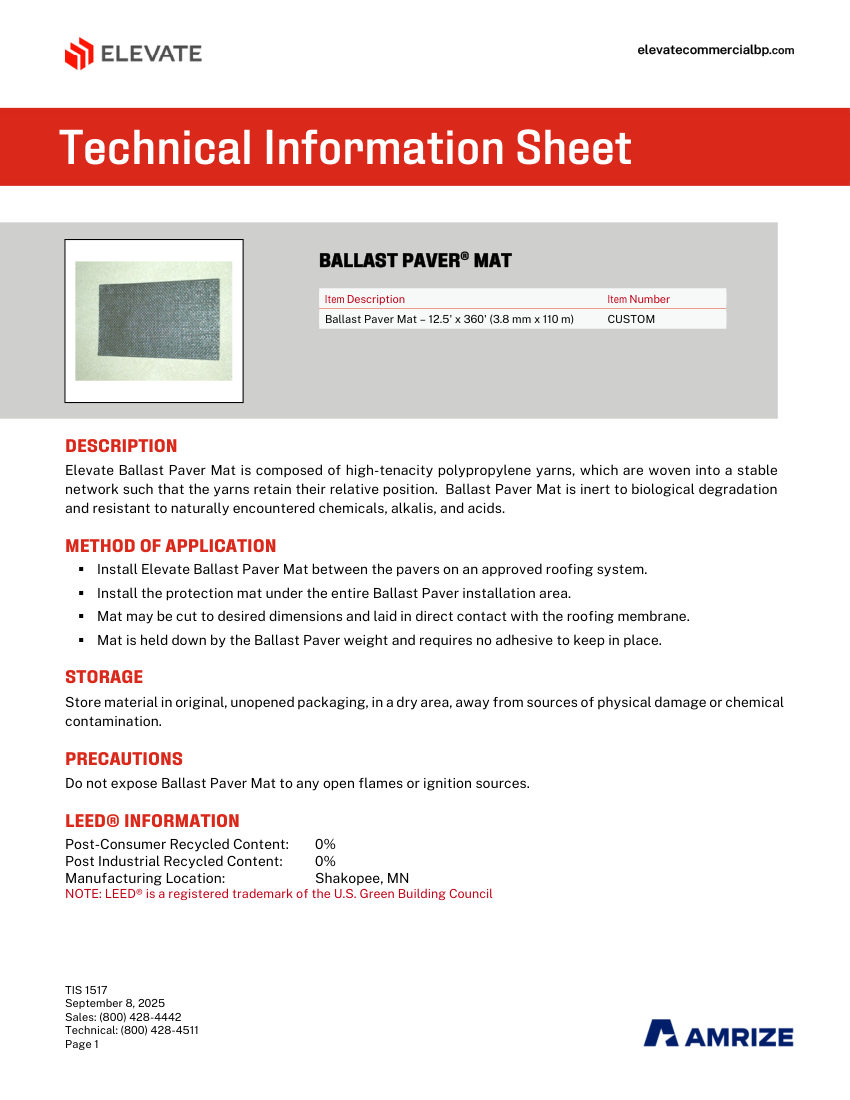

ElevateTIS 1517 - BALLAST PAVER MAT

Name: Elevate TIS 1517 - BALLAST PAVER MAT
Brand: Elevate
SKU: TIS 1517 - BALLAST PAVER MAT

Elevate Ballast Paver Mat (Roofing Protection). Model TIS 1517. Weight: 6.0 oz/yd² (203 g/m²)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	TIS 1517 - BALLAST PAVER MAT
Description	Elevate Ballast Paver Mat (Roofing Protection). Model TIS 1517. Weight: 6.0 oz/yd² (203 g/m²)
Thickness	0.025" (0.64 mm); Wide Width Tensile Strength: 175 lb/in (30.6 kN/m)
Grab Tensile Strength	315 lb (1.4 kN/m). material: High-tenacity polypropylene yarns
Flow Rate	4 Gal/min/ft² (163 l/min/m2)
Mounting	Held down by Ballast Paver weight, no adhesive required
Dimensions	12.5 ft wide x 360 ft long (3.8 m x 110 m)
Compliance	ASTM D 5261, ASTM D 5199, ASTM D 4595, ASTM D 4632, ASTM D 4533, ASTM D 3786, ASTM D 4833, ASTM D 4751, ASTM D 4491, ASTM D 4355.
