DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

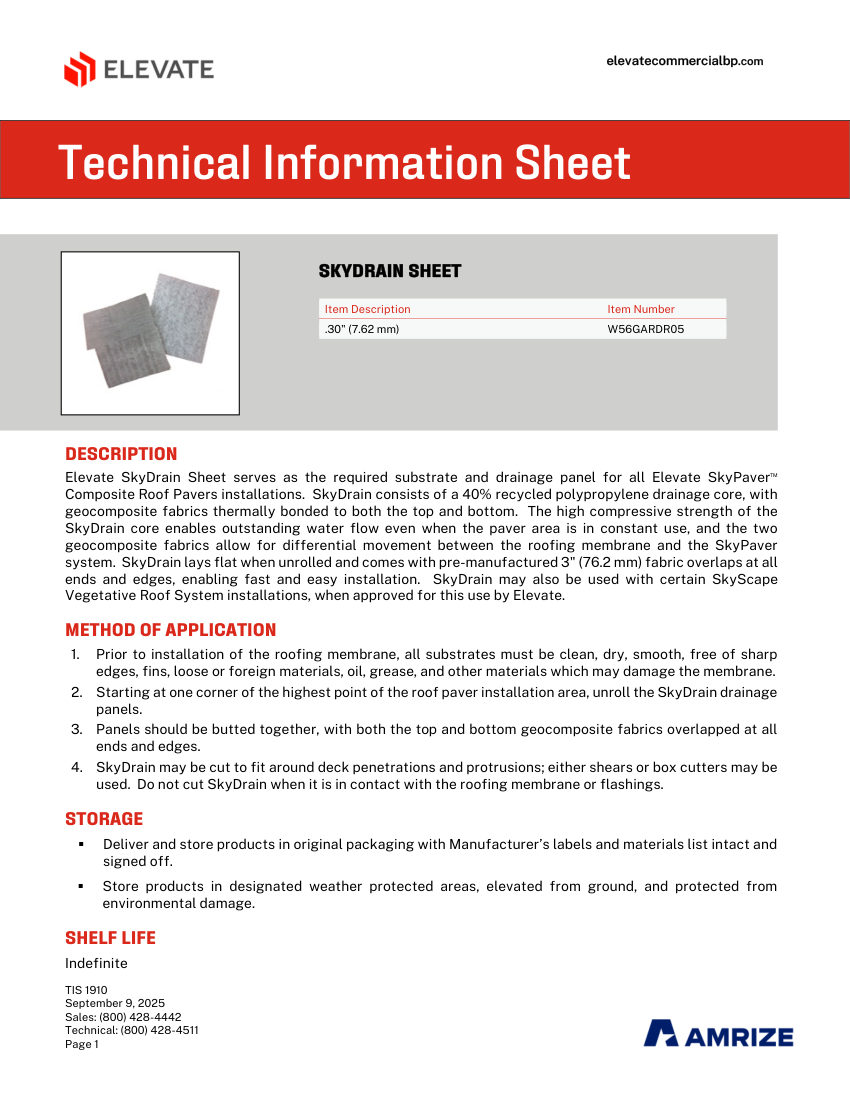

ElevateTIS 1910 - SKYDRAIN SHEET

Name: Elevate TIS 1910 - SKYDRAIN SHEET
Brand: Elevate
SKU: TIS 1910 - SKYDRAIN SHEET

Elevate Drainage Sheet (Roofing). Model W56GARDR05. Compressive Load >30,000 psf (>1436 kN/m²)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	TIS 1910 - SKYDRAIN SHEET
Description	Elevate Drainage Sheet (Roofing). Model W56GARDR05. Compressive Load >30,000 psf (>1436 kN/m²)
Coverage Rate	601.3 sq ft (55.9 m²) per roll; Post-consumer recycled content: 40%
Grab Strength	125 lb (556.0 N). material: 40% recycled polypropylene core with geocomposite fabrics (PA6 & PET)
End connection	Pre-manufactured 3" (76.2 mm) fabric overlaps
Flow Rate	185.0 gal/min/ft² (125.61 L/sec/m²)
Mounting	Unrolled and butted together
Dimensions	0.30" (7.62 mm) thick, 39" (996.6 mm) wide, 185' (56.4 m) long
Compliance	ASTM D 1621, D 716, 4632, 4633, 4751, 4491.
