ElevateTIS 1944 - SKYSCAPE DRAINAGE PANEL HALF INCH AND 1 INCH

Elevate Drainage Panel (Green Roof Systems). Model TIS 1944. Available in 0.5" (12.7 mm) and 1.0" (25.4 mm) thicknesses

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTIS-1944---SKYSCAPE-DRAINAGE-PANEL-HALF-INCH-AND-1-INCH.pdfData sheet

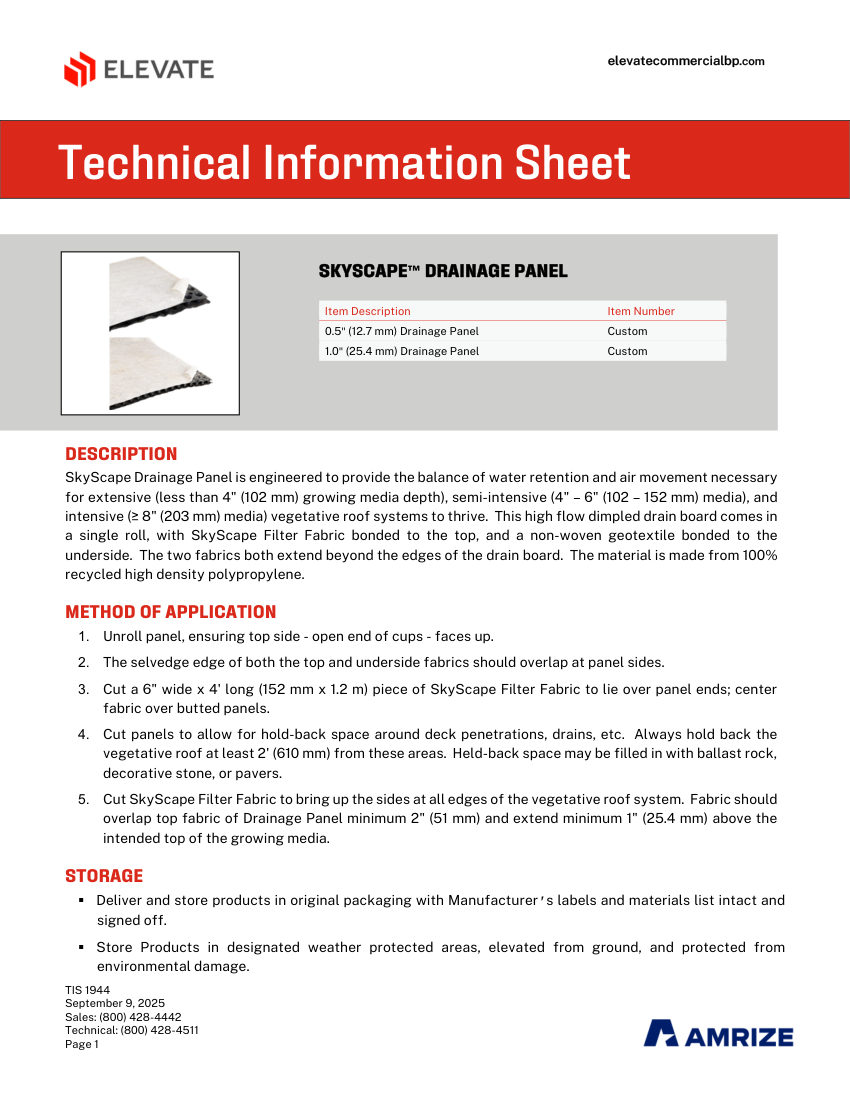

Elevate TIS 1944 - SKYSCAPE DRAINAGE PANEL HALF INCH AND 1 INCH cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TIS 1944 - SKYSCAPE DRAINAGE PANEL HALF INCH AND 1 INCH
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTIS 1944 - SKYSCAPE DRAINAGE PANEL HALF INCH AND 1 INCH
DescriptionElevate Drainage Panel (Green Roof Systems). Model TIS 1944. Available in 0.5" (12.7 mm) and 1.0" (25.4 mm) thicknesses
Compressive strength15,000 lb/ft² (0.5") and 11,000 lb/ft² (1.0")
Water capacity0.042 gal/ft² (0.5") and 0.1005 gal/ft² (1.0"); Includes bonded SkyScape Filter Fabric on top and non-woven geotextile on underside. material: 100% recycled high density polypropylene
Flow Rate21-37 gpm/ft² (Core), 250 gpm/ft² (Fabric)
MountingUnrolled, cut to fit, fabrics overlap at edges
Dimensions4' x 50' (1.2 m x 15.2 m) per roll
ComplianceLEED® 100% Post-consumer recycled con
