ElevateTIS 2013 - UC-501 REVEAL FLUSH PANEL FOR ARCHITECTURAL SOFFI

Elevate Reveal Flush Soffit and Fascia Panel (Architectural Metal Panels). Model UC-501. Factory-formed interlocking panel with concealed fastening system; Panel depth is 1 inch (25.4 mm) with a seam height of 1.143 inches (29 mm); Available in Aluminum, Galvanized Steel, Galvalume, and Copper; Fire rated UL Class A per UL 263 and UL 790. material: Aluminum, Galvanized Steel, Galvalume, Copper

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTIS-2013---UC-501-REVEAL-FLUSH-PANEL-FOR-ARCHITECTURAL-SOFFI.pdfData sheet

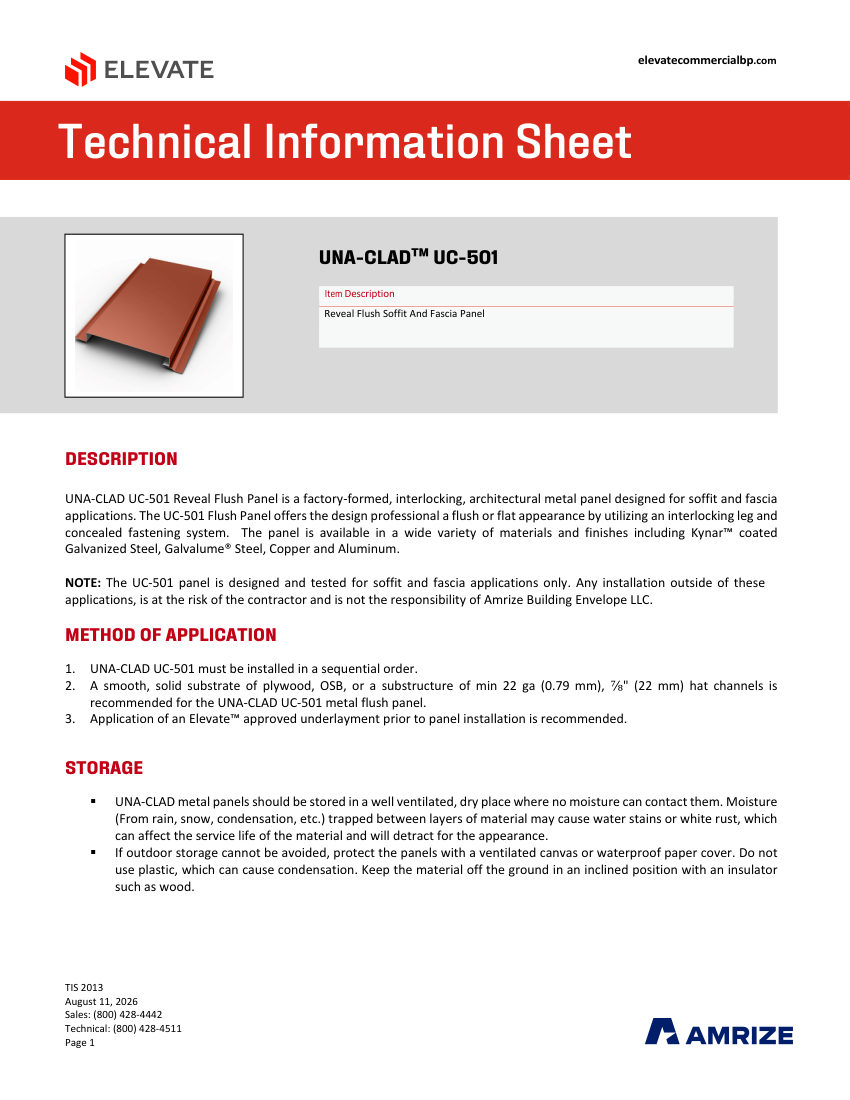

Elevate TIS 2013 - UC-501 REVEAL FLUSH PANEL FOR ARCHITECTURAL SOFFI cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TIS 2013 - UC-501 REVEAL FLUSH PANEL FOR ARCHITECTURAL SOFFI
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTIS 2013 - UC-501 REVEAL FLUSH PANEL FOR ARCHITECTURAL SOFFI
DescriptionElevate Reveal Flush Soffit and Fascia Panel (Architectural Metal Panels). Model UC-501. Factory-formed interlocking panel with concealed fastening system; Panel depth is 1 inch (25.4 mm) with a seam height of 1.143 inches (29 mm); Available in Aluminum, Galvanized Steel, Galvalume, and Copper; Fire rated UL Class A per UL 263 and UL 790. material: Aluminum, Galvanized Steel, Galvalume, Copper
End connectionInterlocking Joint
FinishKynar 500/Hylar 5000, Anodized, Unpainted/Mill Finish, Unpainted G90
MountingSolid Substrate or Hat Channels
DimensionsDepth 1" (25.4 mm), Min Length 36"
