DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTIS 2022 - UC KYNAR 500 HYLAR 5000 PRE-FINISHED GALVALUME ST

Elevate Pre-finished Galvalume Steel Sheet and Coil (Architectural Metal). Model UNA-CLAD KYNAR 500/HYLAR 5000. Coating: UNA-CLAD PVDF (min 70% Hylar/Kynar) with 1.0 mil dry film thickness

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTIS-2022---UC-KYNAR-500-HYLAR-5000-PRE-FINISHED-GALVALUME-ST.pdfData sheet

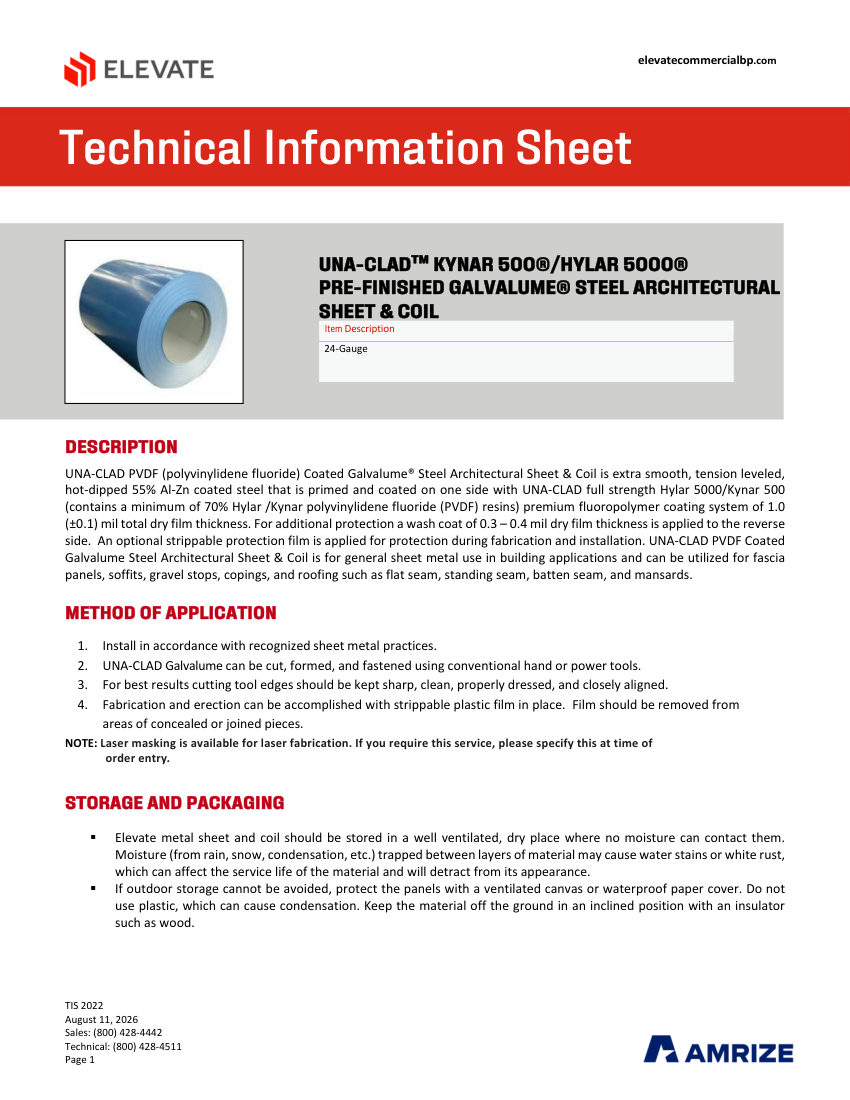

Elevate TIS 2022 - UC KYNAR 500 HYLAR 5000 PRE-FINISHED GALVALUME ST cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TIS 2022 - UC KYNAR 500 HYLAR 5000 PRE-FINISHED GALVALUME ST
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTIS 2022 - UC KYNAR 500 HYLAR 5000 PRE-FINISHED GALVALUME ST
DescriptionElevate Pre-finished Galvalume Steel Sheet and Coil (Architectural Metal). Model UNA-CLAD KYNAR 500/HYLAR 5000. Coating: UNA-CLAD PVDF (min 70% Hylar/Kynar) with 1.0 mil dry film thickness
Base MetalAZ50 Galvalume steel meeting ASTM A792/A792M
Minimum Yield Strength50 KSI
Recycled Content79% Post-Consumer, 7% Pre-Consumer. material: 24-Gauge Hot-dipped 55% Al-Zn coated steel (AZ50)
FinishExtra Smooth Matte, Low to Medium Gloss PVDF Coating
DimensionsCoil: 4.0"-48" wide
Sheet48" x 96", 120", or 144"
ComplianceASTM A792/A792M, AAMA 621-02.
