DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTIS 2026 - UNA-CLAD 5V CRIMP

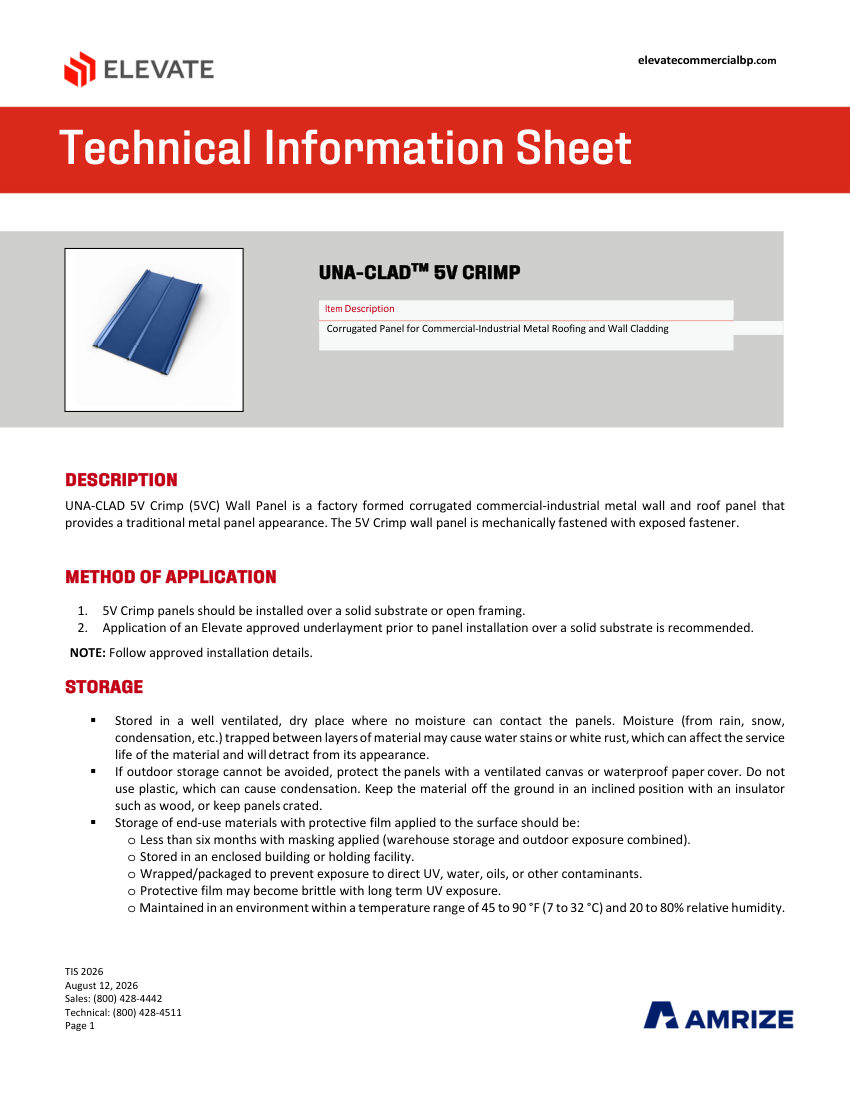

Name: Elevate TIS 2026 - UNA-CLAD 5V CRIMP
Brand: Elevate
SKU: TIS 2026 - UNA-CLAD 5V CRIMP

Elevate Corrugated Metal Panel (Metal Roofing and Wall Cladding). Model UNA-CLAD 5V CRIMP. Panel Type: Commercial-Industrial

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	TIS 2026 - UNA-CLAD 5V CRIMP
Description	Elevate Corrugated Metal Panel (Metal Roofing and Wall Cladding). Model UNA-CLAD 5V CRIMP. Panel Type: Commercial-Industrial
Joint Design	Over Lapping
Fire Rating	UL Class A Rated Assemblies
Hail Impact Rating	Class 4, UL 2218. material: Aluminum 0.032" (0.81 mm) or Galvanized Steel 24 ga (0.64 mm) / 22 ga (0.79 mm)
End connection	Exposed fastener
Pressure Rating	UL 580 Class 90
Finish	Anodized, Kynar 500/Hylar 5000, Unpainted/Mill Finish, Unpainted G90
Mounting	Solid Substrate or Open Framing
Dimensions	22.5" (571.5 mm) Panel Width; 20.5" (520.7 mm) Net Coverage; 36" (914.4 mm)
