DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

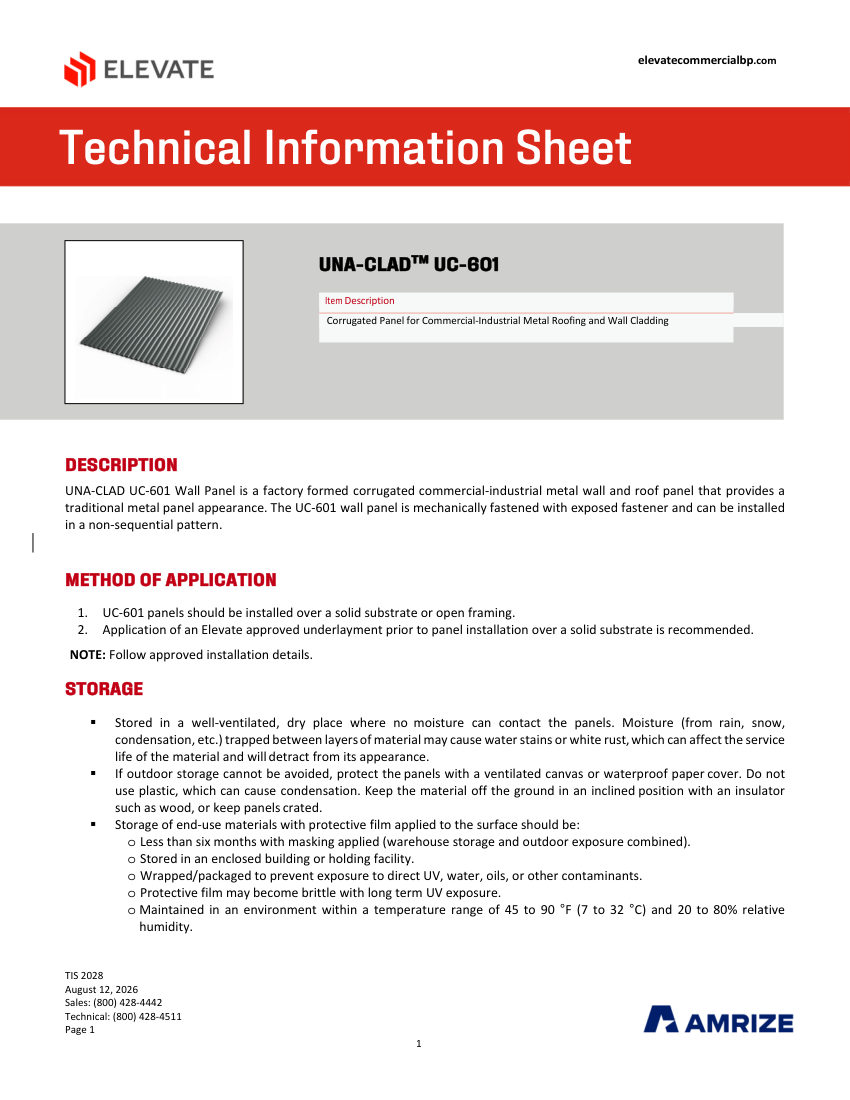

ElevateTIS 2028 - UC-601

Name: Elevate TIS 2028 - UC-601
Brand: Elevate
SKU: TIS 2028 - UC-601

Elevate Corrugated Panel (Metal Roofing and Wall Cladding). Model UC-601. Panel Type: Commercial-Industrial

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	TIS 2028 - UC-601
Description	Elevate Corrugated Panel (Metal Roofing and Wall Cladding). Model UC-601. Panel Type: Commercial-Industrial
Joint Design	Over Lapping
Fire Rating	UL Class A Rated Assemblies
Hail Impact Rating	Class 4, UL 2218. material: Galvanized Steel (AISI-G90) or Galvalume/Zincalume (AZ-50)
End connection	Exposed fastener
Finish	Kynar 500/Hylar 5000, Unpainted G90, Zincalume Plus
Mounting	Mechanically fastened
Dimensions	42.5" (1.08 m) Panel Width; 12" to 480" (304.8 mm to 12.19 m) Length
Compliance	ASTM E 283, E 1680, E 330, E 1592, E 331, E 1646, AAMA 501, UL 263, UL 790, UL 2218.
