DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTIS 206 - ULTRAPLY TPO PENETRATION POCKET

Elevate TPO Penetration Pocket (Roofing). Model W56TPO301N, W56TPOLT01N, W56TPOG01N. Designed for Elevate UltraPly TPO systems; Seals around odd-shaped penetrations or small clusters; Includes PVC ring with 6" inside diameter and 2" height; Requires separate primer and pourable sealer for installation. material: Thermoplastic Polyolefin (TPO), PVC

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTIS-206---ULTRAPLY-TPO-PENETRATION-POCKET.pdfData sheet

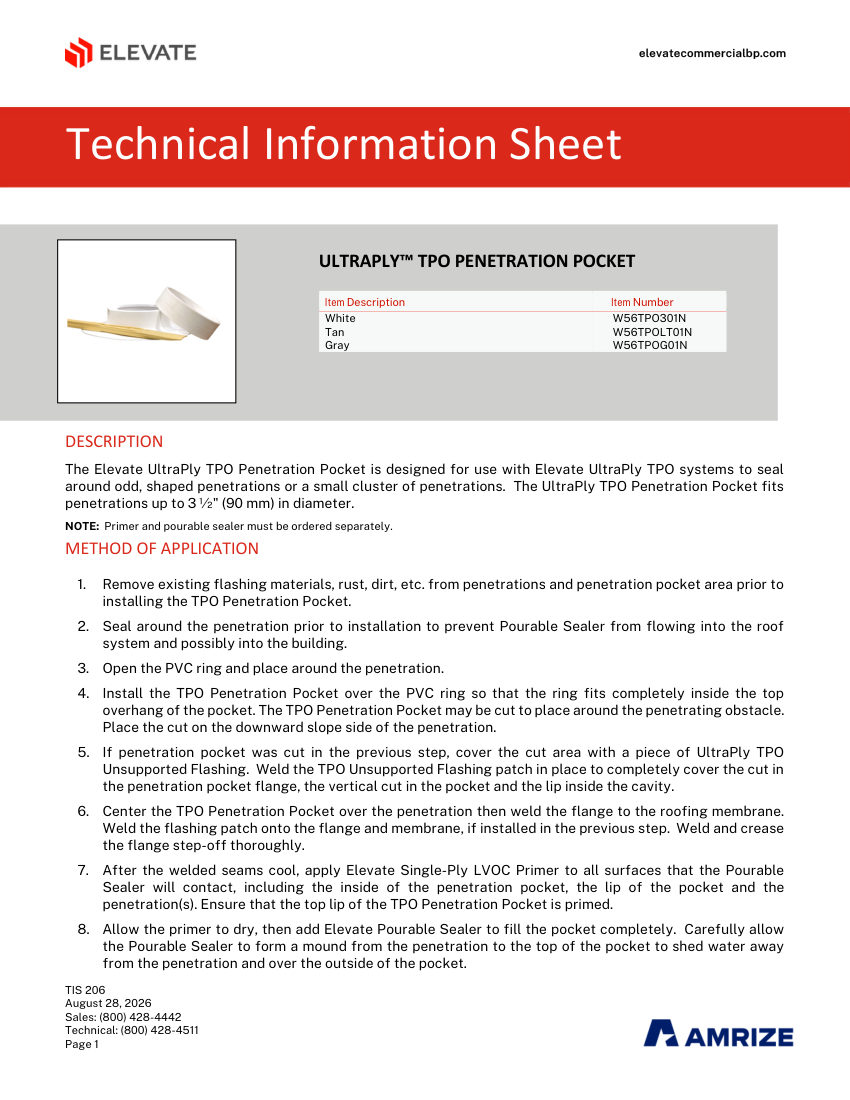

Elevate TIS 206 - ULTRAPLY TPO PENETRATION POCKET cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TIS 206 - ULTRAPLY TPO PENETRATION POCKET
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTIS 206 - ULTRAPLY TPO PENETRATION POCKET
DescriptionElevate TPO Penetration Pocket (Roofing). Model W56TPO301N, W56TPOLT01N, W56TPOG01N. Designed for Elevate UltraPly TPO systems; Seals around odd-shaped penetrations or small clusters; Includes PVC ring with 6" inside diameter and 2" height; Requires separate primer and pourable sealer for installation. material: Thermoplastic Polyolefin (TPO), PVC
Connection sizeFits up to 3 ½" (89 mm) diameter penetration
FinishWhite, Tan, Gray
MountingWelded to roofing membrane
Dimensions12.1" (307 mm) flange diameter, 6" (152 mm) inside diameter, 0.045" (1.14 mm) min. thickness.
