ElevateTIS 2086 - UNA-CLAD DELTA CFP-16F

Elevate Concealed Fastener Panel (UNA-CLAD). Model CFP-16F. Panel width is fixed at 16 inches (406.4 mm); Available in 22-ga and 24-ga G90 Galvanized Steel or 0.040" Aluminum; Features standardized lock joint design for multiple profile integration; Optional stand-off clips provide ventilation cavity and drain plane. material: G90 Galvanized Steel, Aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTIS-2086---UNA-CLAD-DELTA-CFP-16F.pdfData sheet

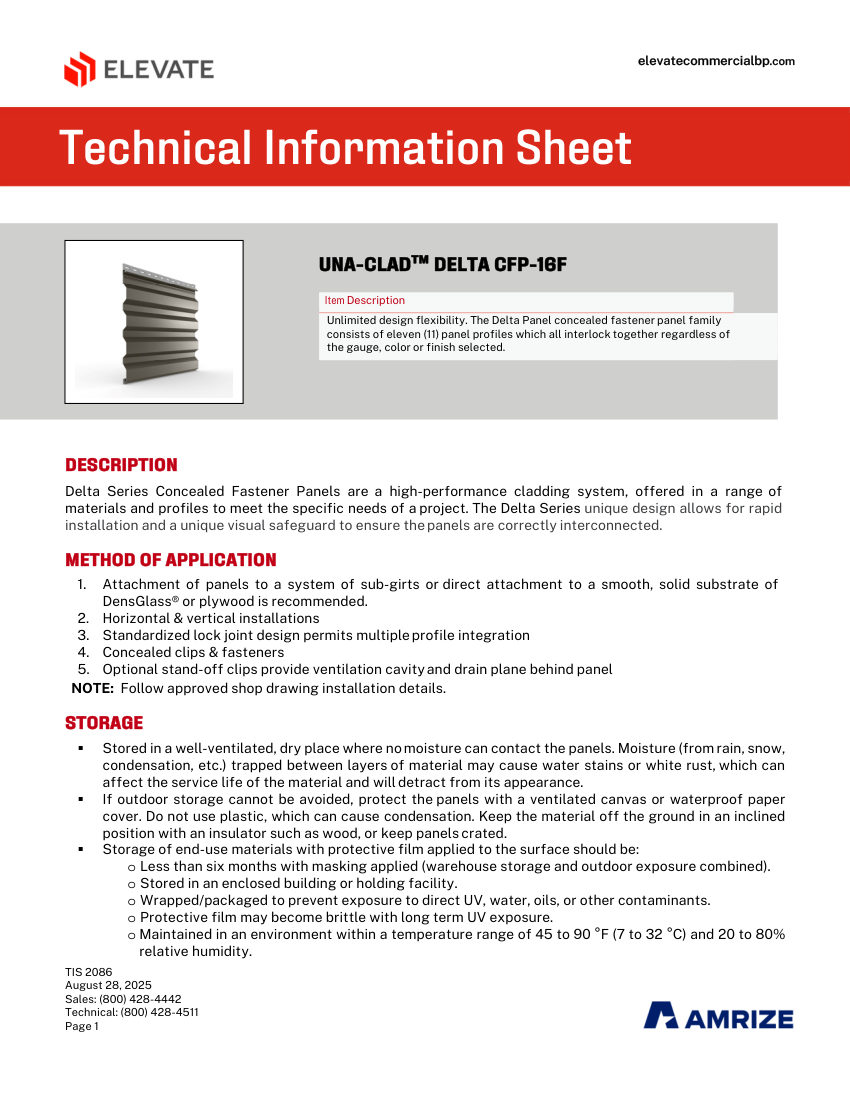

Elevate TIS 2086 - UNA-CLAD DELTA CFP-16F cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TIS 2086 - UNA-CLAD DELTA CFP-16F
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTIS 2086 - UNA-CLAD DELTA CFP-16F
DescriptionElevate Concealed Fastener Panel (UNA-CLAD). Model CFP-16F. Panel width is fixed at 16 inches (406.4 mm); Available in 22-ga and 24-ga G90 Galvanized Steel or 0.040" Aluminum; Features standardized lock joint design for multiple profile integration; Optional stand-off clips provide ventilation cavity and drain plane. material: G90 Galvanized Steel, Aluminum
End connectionConcealed clips & fasteners
FinishKynar 500/Hylar 5000, Anodized
MountingSub-girt or direct attachment to DensGlass/plywood
Dimensions16" (406.4 mm) width, 60" (1.524 m) min length, 40' (12.2 m) max length; complian
