DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTIS 2087 - UNA-CLAD DELTA CFP-16T

Elevate Concealed Fastener Panel (UNA-CLAD). Model CFP-16T. Panel width is fixed at 16 inches (406.4 mm); Available in 22-ga and 24-ga G90 Galvanized Steel; Available in 0.040" (1.02 mm) and 0.050" (1.27 mm) Aluminum; Maximum length is 30 feet (9.1 m) for steel and 22 feet (6.7 m) for aluminum. material: G90 Galvanized Steel, Aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTIS-2087---UNA-CLAD-DELTA-CFP-16T.pdfData sheet

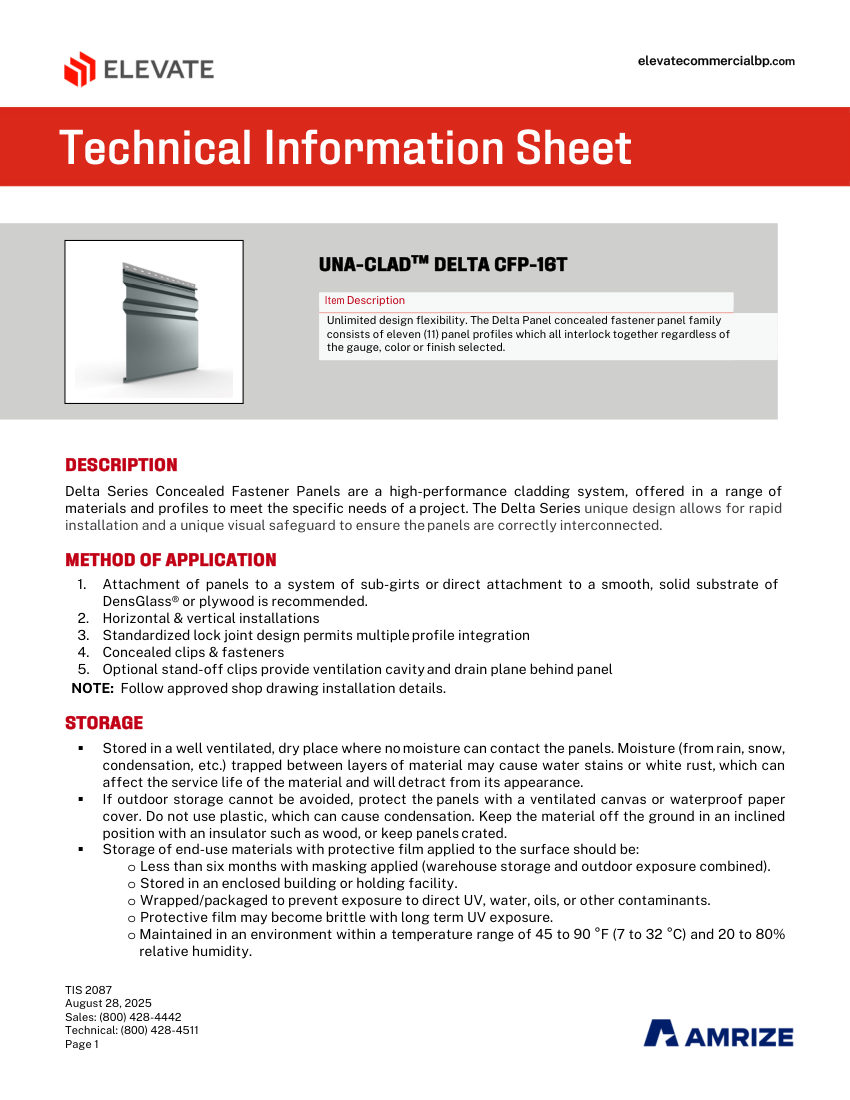

Elevate TIS 2087 - UNA-CLAD DELTA CFP-16T cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TIS 2087 - UNA-CLAD DELTA CFP-16T
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTIS 2087 - UNA-CLAD DELTA CFP-16T
DescriptionElevate Concealed Fastener Panel (UNA-CLAD). Model CFP-16T. Panel width is fixed at 16 inches (406.4 mm); Available in 22-ga and 24-ga G90 Galvanized Steel; Available in 0.040" (1.02 mm) and 0.050" (1.27 mm) Aluminum; Maximum length is 30 feet (9.1 m) for steel and 22 feet (6.7 m) for aluminum. material: G90 Galvanized Steel, Aluminum
End connectionConcealed clips & fasteners
FinishKynar 500/Hylar 5000, Anodized
MountingSub-girt or direct attachment to DensGlass/plywood
Dimensions16" (406.4 mm) width, up to 30' (9.1 m) length
ComplianceASTM E 283, ASTM E 331, ASTM E 330, ASTM E 1
