ElevateTIS 2144 - ELEVATE MAX PVC SPLIT PIPE BOOT

Elevate PVC Split Pipe Boot (Roofing Flashing). Model TIS 2144. Acceptable for all round penetrations where pre-molded flashing cannot be used; Oversized 5/8" (15.88 mm) for 1-3" pipes and 3/8" (9.53 mm) for larger sizes; Requires AP Sealant and stainless-steel clamping ring for installation; Fastener spacing must not exceed 12" (304.8 mm) on center. material: PVC roofing membrane

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTIS-2144---ELEVATE-MAX-PVC-SPLIT-PIPE-BOOT.pdfData sheet

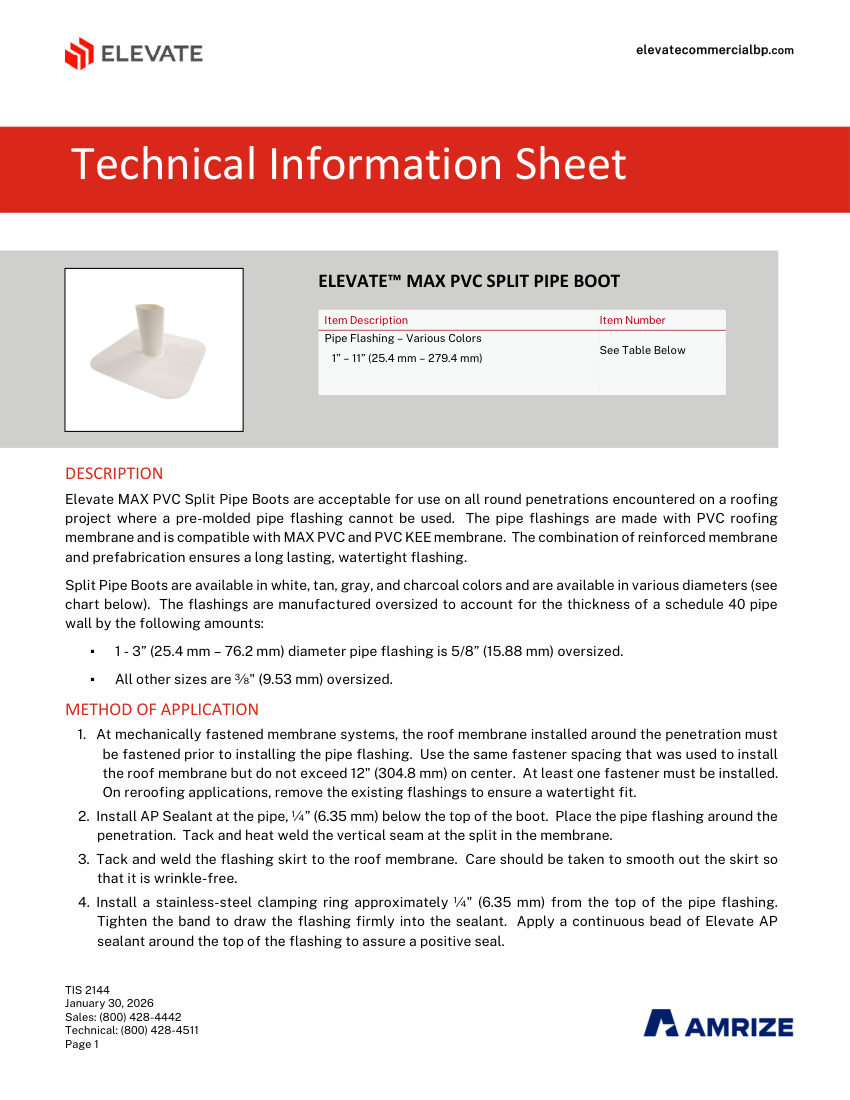

Elevate TIS 2144 - ELEVATE MAX PVC SPLIT PIPE BOOT cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TIS 2144 - ELEVATE MAX PVC SPLIT PIPE BOOT
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTIS 2144 - ELEVATE MAX PVC SPLIT PIPE BOOT
DescriptionElevate PVC Split Pipe Boot (Roofing Flashing). Model TIS 2144. Acceptable for all round penetrations where pre-molded flashing cannot be used; Oversized 5/8" (15.88 mm) for 1-3" pipes and 3/8" (9.53 mm) for larger sizes; Requires AP Sealant and stainless-steel clamping ring for installation; Fastener spacing must not exceed 12" (304.8 mm) on center. material: PVC roofing membrane
Connection size1" – 11" (25.4 mm – 279.4 mm)
End connectionSplit seam heat welded
FinishWhite, Tan, Gray, Charcoal
MountingMechanically fastened, heat welded, clamping ring
DimensionsHeight 8" (203.2 mm)
