ElevateTIS 2145 - MAX PVC UNIVERSAL PIPE BOOT

Elevate PVC Universal Pipe Boot (Roofing Flashing). Model W56PVAW1100. Fits pipe outside diameters from 1" (25 mm) to 6" (152.4 mm); Material is Standard PVC with a thickness of 0.065" (1.65 mm); Includes stainless steel worm gear clamp for installation; Designed for MAX PVC and PVC KEE roof systems. material: Standard PVC

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTIS-2145---MAX-PVC-UNIVERSAL-PIPE-BOOT.pdfData sheet

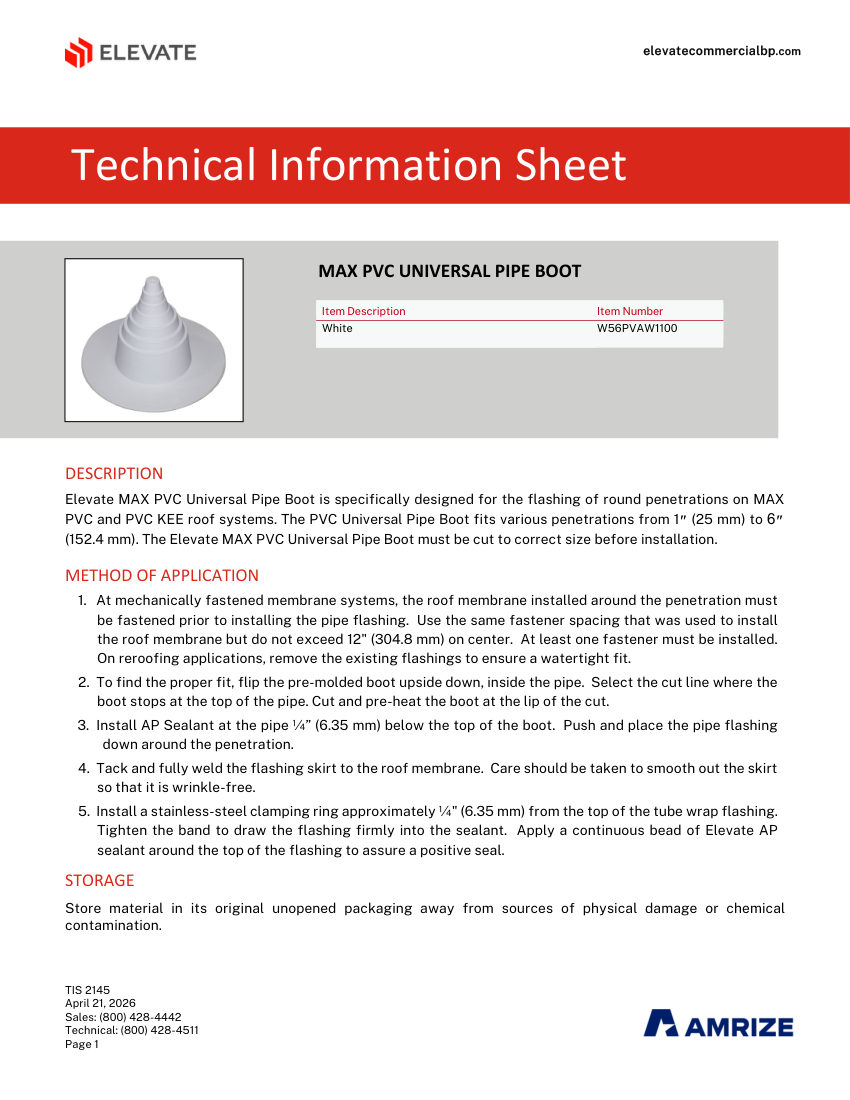

Elevate TIS 2145 - MAX PVC UNIVERSAL PIPE BOOT cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TIS 2145 - MAX PVC UNIVERSAL PIPE BOOT
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTIS 2145 - MAX PVC UNIVERSAL PIPE BOOT
DescriptionElevate PVC Universal Pipe Boot (Roofing Flashing). Model W56PVAW1100. Fits pipe outside diameters from 1" (25 mm) to 6" (152.4 mm); Material is Standard PVC with a thickness of 0.065" (1.65 mm); Includes stainless steel worm gear clamp for installation; Designed for MAX PVC and PVC KEE roof systems. material: Standard PVC
Connection size1" to 6" (25 mm to 152.4 mm)
End connectionStainless steel worm gear clamp
FinishWhite
MountingMechanically fastened and welded
DimensionsPipe Flange 13" (330 mm) diameter, Pipe Height 8" (203 mm), Thickness 0.065" (1.65 mm).
