DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTIS 514-C - SBS TORCH

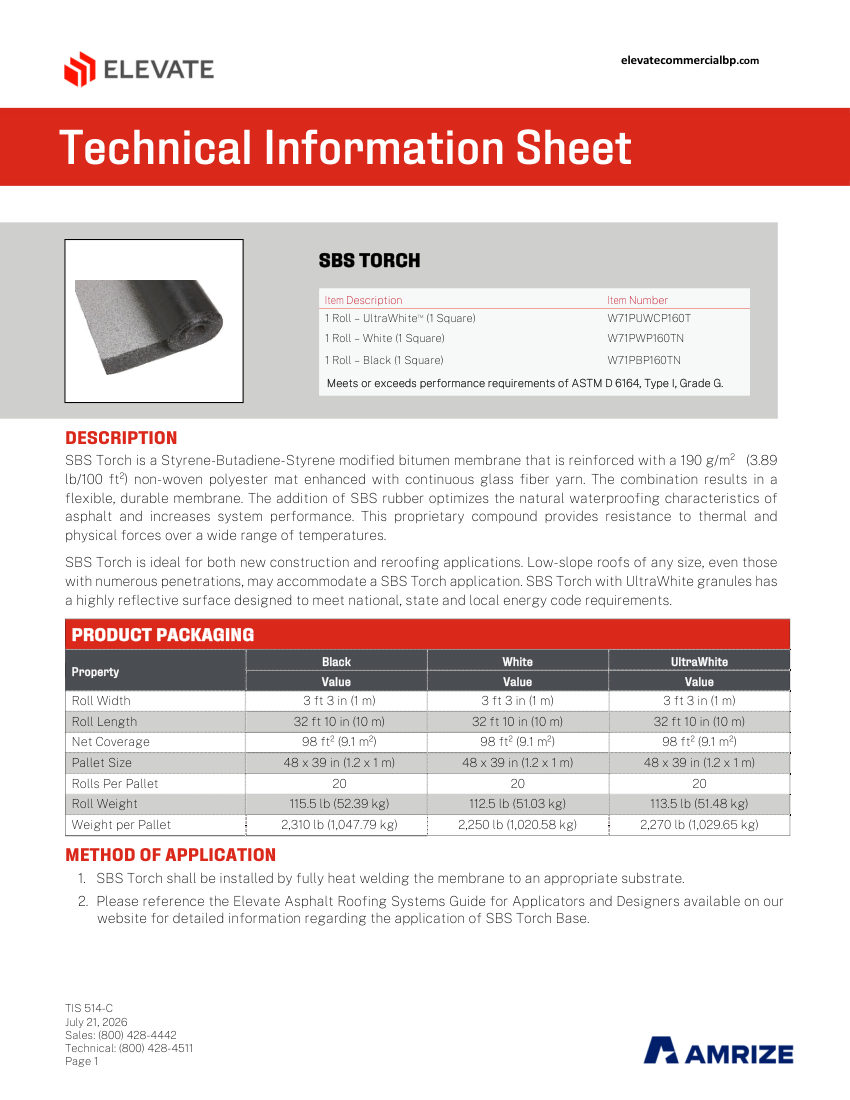

Name: Elevate TIS 514-C - SBS TORCH
Brand: Elevate
SKU: TIS 514-C - SBS TORCH

Elevate SBS Modified Bitumen Membrane (Roofing Membrane). Model W71PUWCP160T / W71PWP160TN / W71PBP160TN. Net coverage per roll: 98 ft² (9.1 m²)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	TIS 514-C - SBS TORCH
Description	Elevate SBS Modified Bitumen Membrane (Roofing Membrane). Model W71PUWCP160T / W71PWP160TN / W71PBP160TN. Net coverage per roll: 98 ft² (9.1 m²)
Typical product thickness	150 mil (3.8 mm)
Typical net mass	90 lb/100 ft² (4,394 g/m²); Peak load at 0 °F: 80 lbf/in (14 kN/m). material: SBS modified bitumen reinforced with 190 g/m² non-woven polyester mat and continuous glass fiber yarn
Finish	UltraWhite, White, or Black granules
Mounting	Heat-welded to substrate
Dimensions	3 ft 3 in (1 m) width x 32 ft 10 in (10 m) length
Compliance	ASTM D 6164, Type I, Grade G.
