DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTIS 6003 - Elevate Canted CopingTIS 6003 - Elevate Canted Coping

Elevate Coping (Roofing & Edge Metal). Model W65CC6813. 16-gauge galvanized cleat segments spaced 60 in o.c.; 6 in concealed splice plate for thermal movement; ANSI/SPRI ES-1 compliant to 16 in width; Meets TAS 11-95 Test with 4 in face, 12 in top, 3 in back. material: 16-gauge galvanized, Aluminum, Galvalume/Zincalume Steel, Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTIS-6003---Elevate-Canted-Coping.pdfData sheet

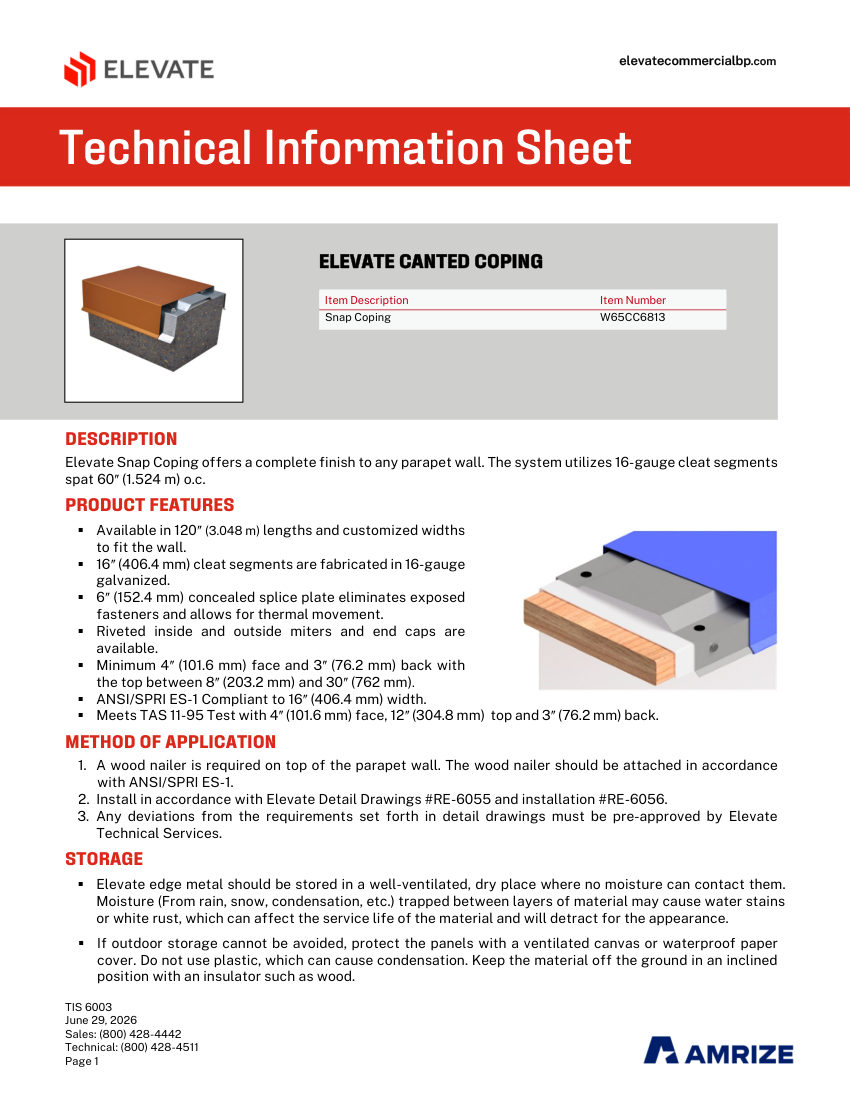

Elevate TIS 6003 - Elevate Canted Coping cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TIS 6003 - Elevate Canted Coping
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTIS 6003 - Elevate Canted Coping
DescriptionElevate Coping (Roofing & Edge Metal). Model W65CC6813. 16-gauge galvanized cleat segments spaced 60 in o.c.; 6 in concealed splice plate for thermal movement; ANSI/SPRI ES-1 compliant to 16 in width; Meets TAS 11-95 Test with 4 in face, 12 in top, 3 in back. material: 16-gauge galvanized, Aluminum, Galvalume/Zincalume Steel, Stainless Steel
End connectionRiveted inside and outside miters and end caps
FinishAnodized, Kynar 500/Hylar 5000, Unpainted/Mill Finish, Zincalume Plus, 2B Mill Finish
MountingWood nailer required, 60 in (1.524 m) o.c. cleat segments
Dimensions120 in (3.048 m)
