ElevateTIS 6004 - Elevate Gutters

Elevate Box-style gutter (Elevate Gutters). Model W65DXG6751, W65EXG6752, W65MXG6752, W65LXG6752. Four box-style profiles: DX, EX, MX, LX; Internal splice plates eliminate need for complete riveting; Roof flanges adjustable for various pitches or eliminable; Aluminum thickness 0.040 in (1.02 mm). material: Aluminum, Galvalume/Zincalume Steel, Stainless Steel, Bonderized Steel, Copper

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTIS-6004---Elevate-Gutters.pdfData sheet

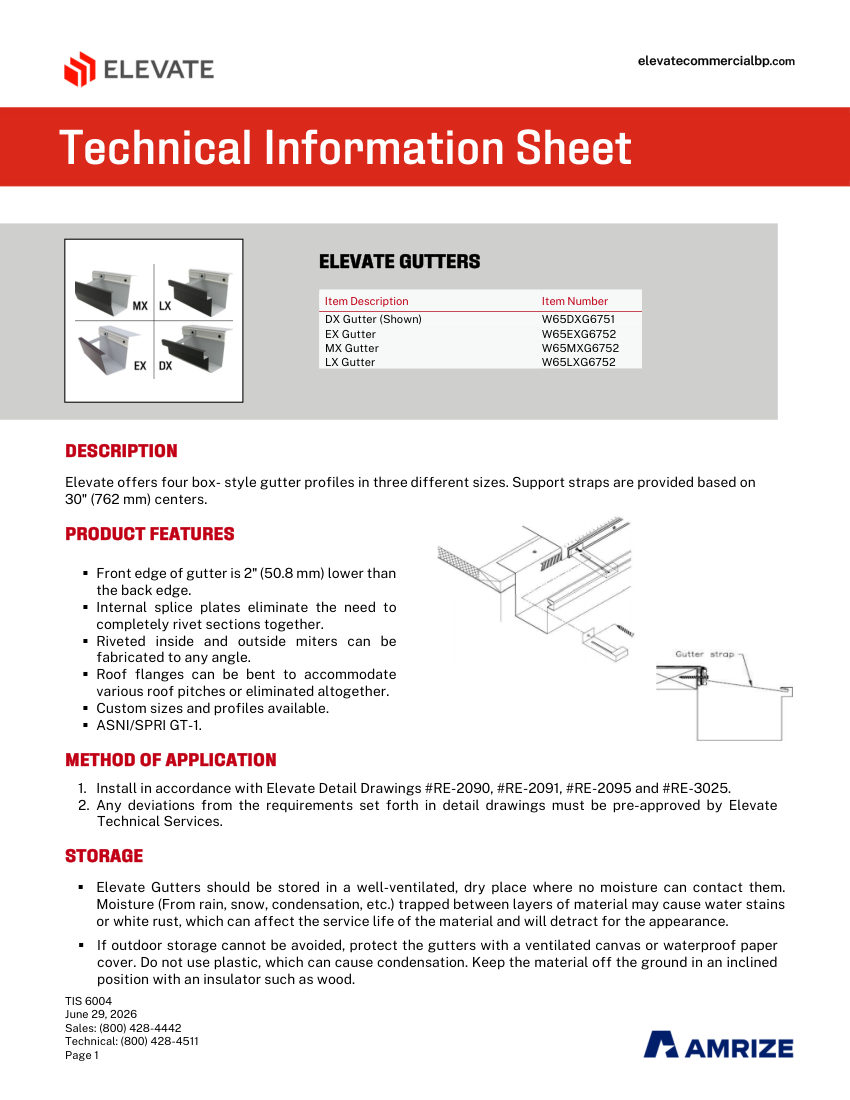

Elevate TIS 6004 - Elevate Gutters cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TIS 6004 - Elevate Gutters
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTIS 6004 - Elevate Gutters
DescriptionElevate Box-style gutter (Elevate Gutters). Model W65DXG6751, W65EXG6752, W65MXG6752, W65LXG6752. Four box-style profiles: DX, EX, MX, LX; Internal splice plates eliminate need for complete riveting; Roof flanges adjustable for various pitches or eliminable; Aluminum thickness 0.040 in (1.02 mm). material: Aluminum, Galvalume/Zincalume Steel, Stainless Steel, Bonderized Steel, Copper
End connectionRiveted inside and outside miters
FinishKynar 500/Hylar 5000, Unpainted/Mill Finish, Zincalume Plus, 2B Mill Finish, Natural
MountingSupport straps at 30 in (762 mm) centers
DimensionsFron
