DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTIS 6005 - Elevate AT Snap-On FasciaTIS 6005 - Elevate AT Snap-On Fascia

Elevate Snap-On Fascia (Roofing Edge Metal). Model W65ATF6150. Base thickness: 0.050 in (1.27 mm) Aluminum or 22 ga (0.79 mm) Galvalume/Zincalume Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTIS-6005---Elevate-AT-Snap-On-Fascia.pdfData sheet

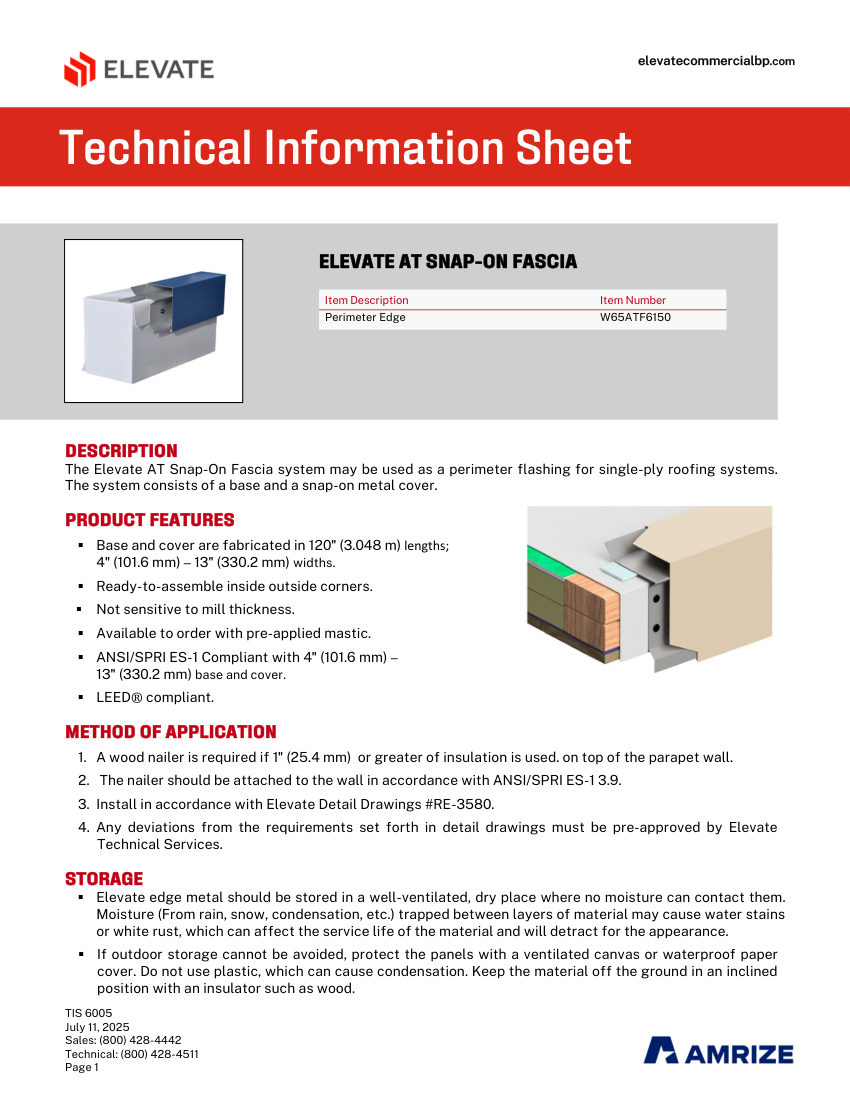

Elevate TIS 6005 - Elevate AT Snap-On Fascia cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TIS 6005 - Elevate AT Snap-On Fascia
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTIS 6005 - Elevate AT Snap-On Fascia
DescriptionElevate Snap-On Fascia (Roofing Edge Metal). Model W65ATF6150. Base thickness: 0.050 in (1.27 mm) Aluminum or 22 ga (0.79 mm) Galvalume/Zincalume Steel
Cover thickness0.040 in (1.02 mm) Aluminum, 24 ga (0.64 mm) Galvalume/Zincalume Steel, or 24 ga (0.64 mm) Stainless Steel; Base Minimum Yield Strength: 21 KSI (145 MPa) for Aluminum, 50 KSI (345 MPa) for Galvalume/Zincalume; Cover Minimum Yield Strength: 21 KSI (145 MPa) for Aluminum, 50 KSI (345 MPa) for Galvalume/Zincalume, 30 KSI (207 MPa) for Stainless Steel. material: Aluminum, Galvalume/Zincalume Steel, Stainless Steel; endConnection:
