DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTIS 6012 T-Drip Edge Plus Fascia

Elevate Drip Edge Fascia (Roofing Edge Metal). Model W65. Double folded drip edge conceals membrane coated hook strip; Consists of drip edge, hook strip, and splice plate; Top piece includes 6 in (152.4 mm) attached membrane skirt; No overlapping allowance required. material: Aluminum, Galvalume/Zincalume Steel, Stainless Steel, Bonderized Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTIS-6012-T-Drip-Edge-Plus-Fascia.pdfData sheet

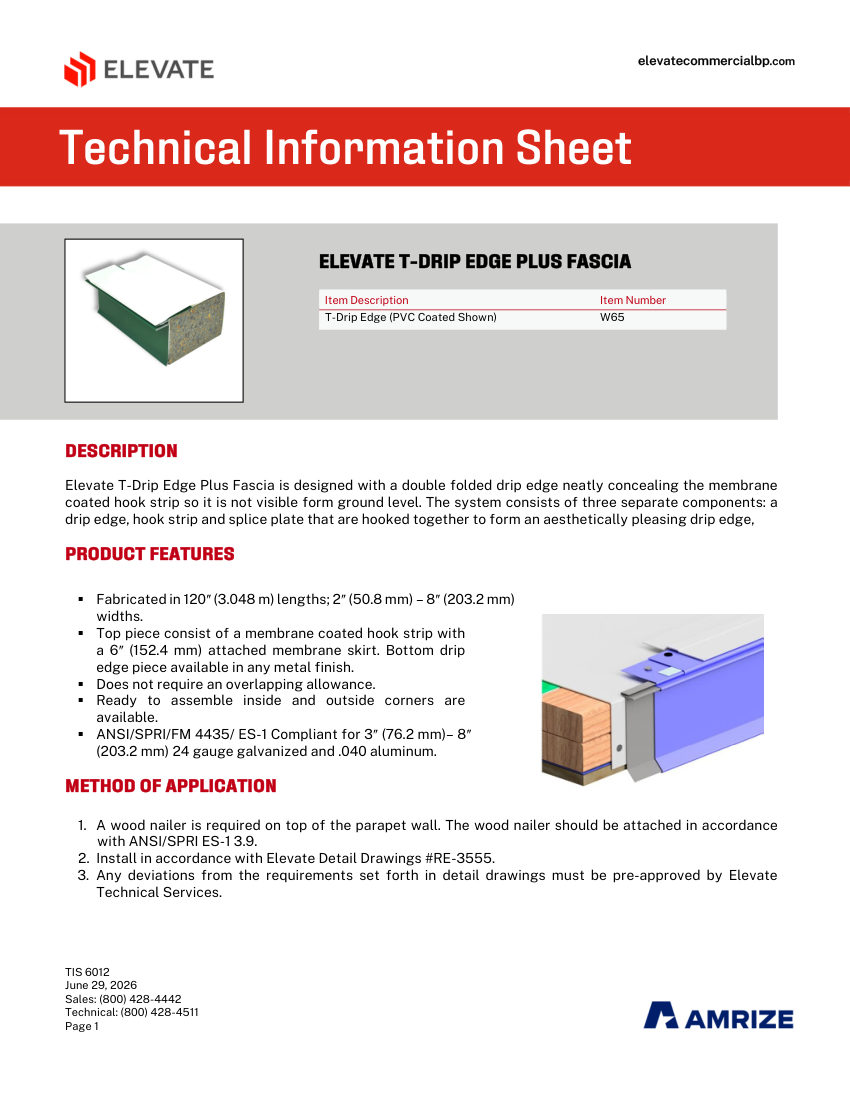

Elevate TIS 6012 T-Drip Edge Plus Fascia cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TIS 6012 T-Drip Edge Plus Fascia
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTIS 6012 T-Drip Edge Plus Fascia
DescriptionElevate Drip Edge Fascia (Roofing Edge Metal). Model W65. Double folded drip edge conceals membrane coated hook strip; Consists of drip edge, hook strip, and splice plate; Top piece includes 6 in (152.4 mm) attached membrane skirt; No overlapping allowance required. material: Aluminum, Galvalume/Zincalume Steel, Stainless Steel, Bonderized Steel
End connectionHooked together
FinishAnodized, Kynar 500/Hylar 5000, Mill, 2B Mill Finish
MountingWood nailer on parapet wall
Dimensions120 in (3.048 m) length; 2 in (50.8 mm) to 8 in (203.2 mm) width
ComplianceANSI/SPRI/FM 4435/ES-1.
