ElevateTIS 7001 – U-ANCHOR U3400 ANCHOR

Elevate U-Anchor (Rooftop Attachment System). Model U3400. 20 Year Guarantee on waterproofing; Installs in less than five minutes; Compatible with flat to vertical surfaces

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTIS-7001-U-ANCHOR-U3400-ANCHOR.pdfData sheet

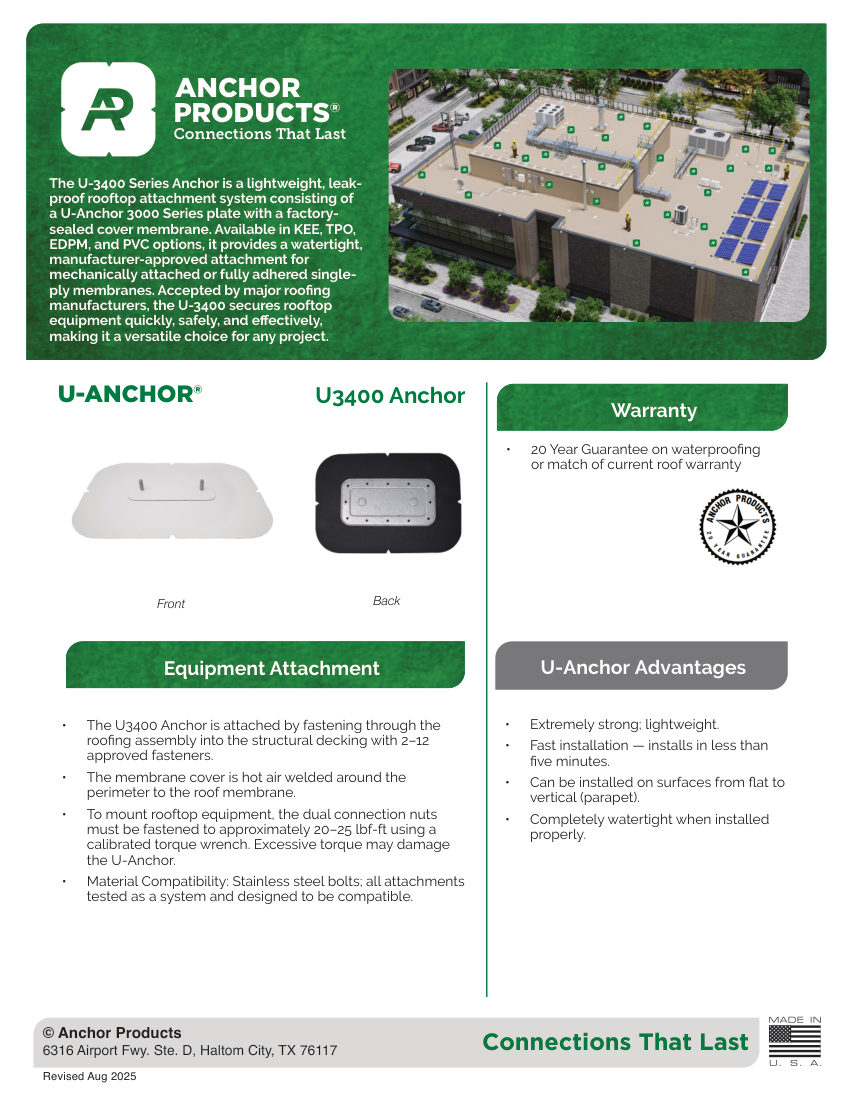

Elevate TIS 7001 – U-ANCHOR U3400 ANCHOR cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TIS 7001 – U-ANCHOR U3400 ANCHOR
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTIS 7001 – U-ANCHOR U3400 ANCHOR
DescriptionElevate U-Anchor (Rooftop Attachment System). Model U3400. 20 Year Guarantee on waterproofing; Installs in less than five minutes; Compatible with flat to vertical surfaces
Torque specification20–25 lbf-ft. material: G90 Galvanized Steel Plate, 304 Stainless Steel Bolts, PVC/KEE/TPO/EPDM Membrane
Connection size3/8''-16
End connectionDual connection nuts
FinishWhite, Gray, Tan, Charcoal (Membrane)
MountingMechanically attached or fully adhered single-ply membranes
Dimensions17.50" L x 11.75" W x 60 mils T (Cover Membrane); 11" x 5.5" (Plate).
