DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

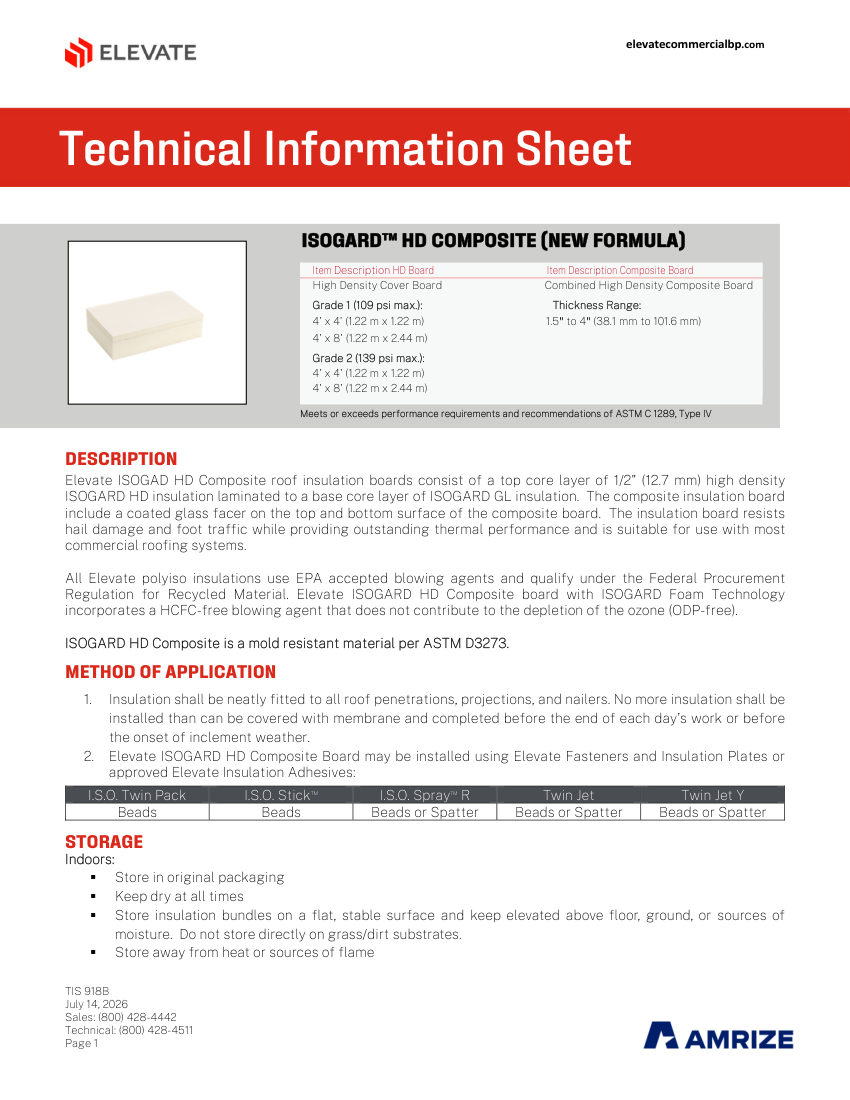

ElevateTIS 918 B - ISOGARD HD COMPOSITE INSULATION

Name: Elevate TIS 918 B - ISOGARD HD COMPOSITE INSULATION
Brand: Elevate
SKU: TIS 918 B - ISOGARD HD COMPOSITE INSULATION

Elevate Composite Insulation Board (Roof Insulation). Model ISOGARD HD COMPOSITE. Compressive Strength: 109 psi (Grade 1) / 139 psi (Grade 2)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	TIS 918 B - ISOGARD HD COMPOSITE INSULATION
Description	Elevate Composite Insulation Board (Roof Insulation). Model ISOGARD HD COMPOSITE. Compressive Strength: 109 psi (Grade 1) / 139 psi (Grade 2)
Density	2 pcf (32 kg/m³)
Service Temperature	-100 to 250 °F (-73 to 121 °C)
Water Absorption	< 1%. material: Polyisocyanurate (Polyiso) with Oriented Strand Board
Finish	Coated glass facer on top and bottom
Mounting	Fasteners or Adhesives
Dimensions	4' x 4' (1.22 m x 1.22 m), 4' x 8' (1.22 m x 2.44 m); Thickness 1.5" to 4" (38.1 mm to 101.6 mm)
Compliance	ASTM C1289 Type IV, UL 723/ASTM E84, FM Global Class 1.
