ElevateTIS 950 - INSULATION ATTACHMENT PATTERNS FOR STANDARD (55 MP

Elevate Insulation Attachment Pattern Specification (Roofing System Technical Data). Model TIS 950. Minimum 16 fasteners per 4x8 ft board for 1/2"-1.4" insulation thickness; Minimum 24 fasteners per 4x12 ft board for 1/2"-1.4" insulation thickness; Adhesive ribbon spacing F12-P6-C6 for non-steel decks; Adhesive ribbon spacing F12-P6-C4 for steel decks. material: ISO 95+ GL, ISOGARD GL, RESISTA, ISOGARD CG, DensDeck Prime, Securock Gypsum-Fiber Board, DEXcell FA Glass Mat, DEXcell Cement Board, ISOGARD HD

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTIS-950---INSULATION-ATTACHMENT-PATTERNS-FOR-STANDARD-55-MP.pdfData sheet

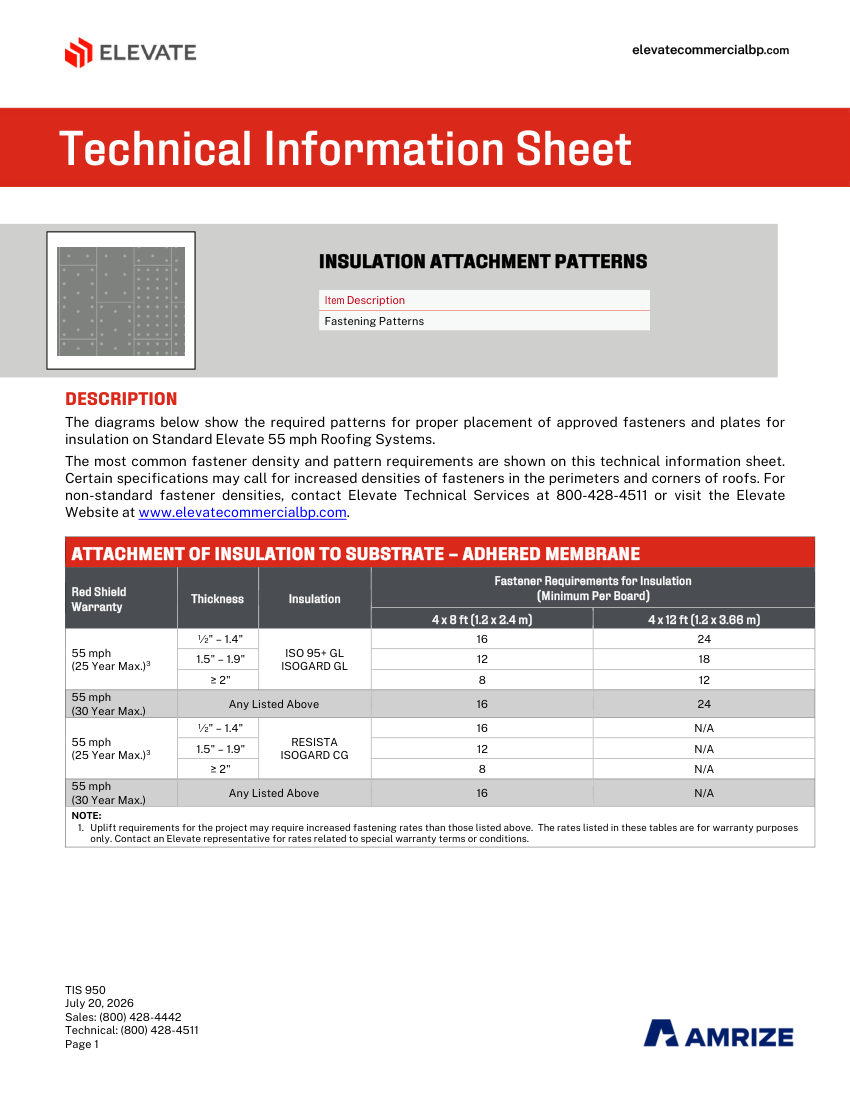

Elevate TIS 950 - INSULATION ATTACHMENT PATTERNS FOR STANDARD (55 MP cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TIS 950 - INSULATION ATTACHMENT PATTERNS FOR STANDARD (55 MP
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTIS 950 - INSULATION ATTACHMENT PATTERNS FOR STANDARD (55 MP
DescriptionElevate Insulation Attachment Pattern Specification (Roofing System Technical Data). Model TIS 950. Minimum 16 fasteners per 4x8 ft board for 1/2"-1.4" insulation thickness; Minimum 24 fasteners per 4x12 ft board for 1/2"-1.4" insulation thickness; Adhesive ribbon spacing F12-P6-C6 for non-steel decks; Adhesive ribbon spacing F12-P6-C4 for steel decks. material: ISO 95+ GL, ISOGARD GL, RESISTA, ISOGARD CG, DensDeck Prime, Securock Gypsum-Fiber Board, DEXcell FA Glass Mat, DEXcell Cement Board, ISOGARD HD
Connection size4 x 8 ft, 4 x 12 ft, 4 x 4 ft
End connectionAdhered Membrane; pressureR
