DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTIS 953 - STRUCTODEK HD

Elevate High Density Fiberboard Roof Insulation Cover Board (Roofing Insulation). Model TIS 953. Non-asphaltic Primed Red Coating compatible with PVC, TPO, EPDM, and CSPE membranes; Compressive strength of 25 psi @ 10% deformation and 62 psi @ 20% deformation; R-value of 1.3 per 1/2" thickness; Transverse strength of 12-14 Lbf for 1/2" thickness and 24 Lbf for 1" thickness. material: High Density Fiberboard with Primed Red Coating

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTIS-953---STRUCTODEK-HD.pdfData sheet

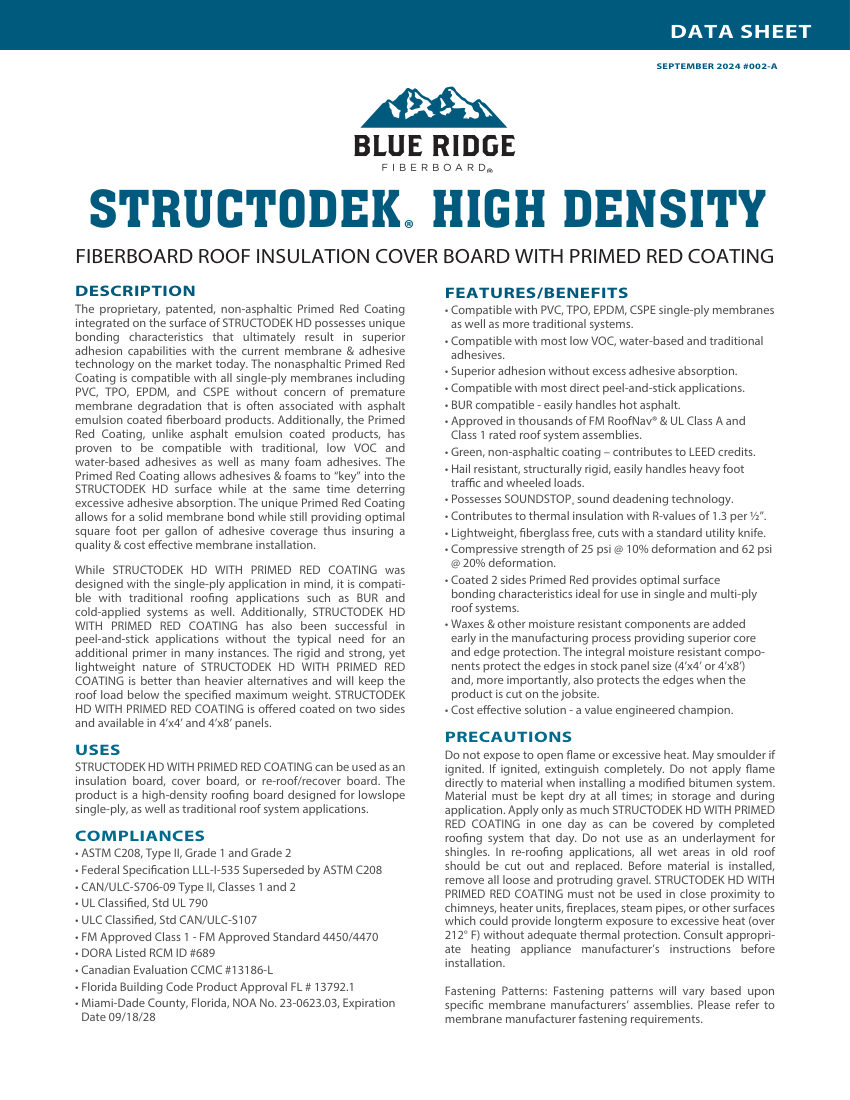

Elevate TIS 953 - STRUCTODEK HD cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TIS 953 - STRUCTODEK HD
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTIS 953 - STRUCTODEK HD
DescriptionElevate High Density Fiberboard Roof Insulation Cover Board (Roofing Insulation). Model TIS 953. Non-asphaltic Primed Red Coating compatible with PVC, TPO, EPDM, and CSPE membranes; Compressive strength of 25 psi @ 10% deformation and 62 psi @ 20% deformation; R-value of 1.3 per 1/2" thickness; Transverse strength of 12-14 Lbf for 1/2" thickness and 24 Lbf for 1" thickness. material: High Density Fiberboard with Primed Red Coating
FinishPrimed Red Coating (2 sides)
MountingAdhesive, Peel-and-Stick, or BUR compatible
Dimensions4'x4' or 4'x8' panels; 1/2" or 1" thickness
ComplianceAS
