DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateTPM-C-03 (UT-C-03) - OUTSIDE CORNER AT WELDED WATERTIGHT CUR

Elevate Outside Corner Flashing at Welded Watertight Curb (Roofing Detail). Model TPM-C-03 (UT-C-03). Designed for Ultraply TPO membrane systems only; Requires 45 mil TPO for 15-year warranty or 60 mil TPO for 20-year warranty; Includes continuous Ultraply TPO GP sealant along curb base; Uses Ecowhite Quickseam corner flashing and water block. material: Ultraply TPO, Ecowhite Quickseam

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFTPM-C-03-UT-C-03---OUTSIDE-CORNER-AT-WELDED-WATERTIGHT-CUR.pdfData sheet

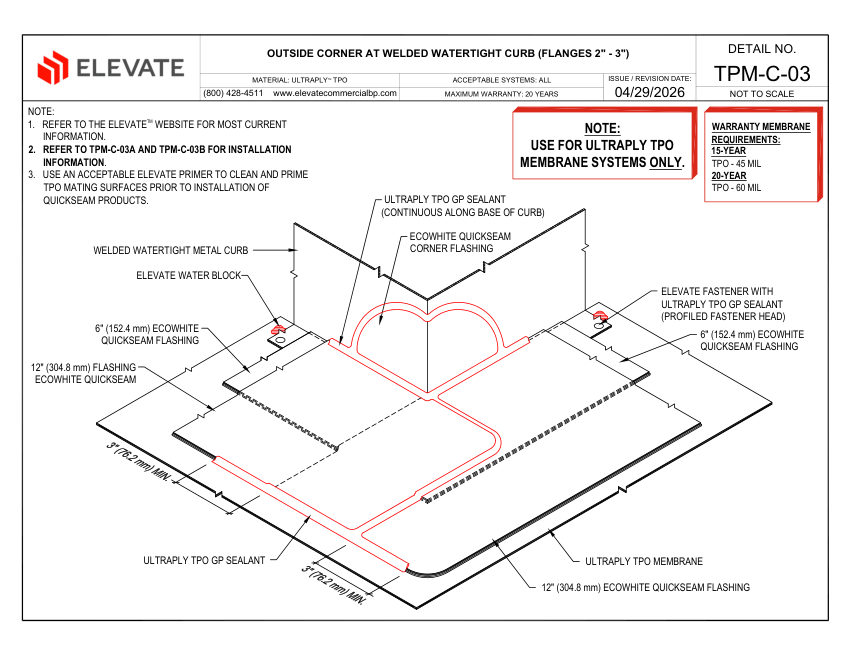

Elevate TPM-C-03 (UT-C-03) - OUTSIDE CORNER AT WELDED WATERTIGHT CUR cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
TPM-C-03 (UT-C-03) - OUTSIDE CORNER AT WELDED WATERTIGHT CUR
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberTPM-C-03 (UT-C-03) - OUTSIDE CORNER AT WELDED WATERTIGHT CUR
DescriptionElevate Outside Corner Flashing at Welded Watertight Curb (Roofing Detail). Model TPM-C-03 (UT-C-03). Designed for Ultraply TPO membrane systems only; Requires 45 mil TPO for 15-year warranty or 60 mil TPO for 20-year warranty; Includes continuous Ultraply TPO GP sealant along curb base; Uses Ecowhite Quickseam corner flashing and water block. material: Ultraply TPO, Ecowhite Quickseam
Connection sizeFlanges 2" - 3"
End connectionWelded
FinishEcowhite
MountingFastened with profiled heads and sealant
Dimensions6" (152.4 mm) and 12" (304.8 mm) flashing widths.
